LUMEL Temperature Controller PID, 2 Output, Fixed input Configurable using PD14 - RE81

Now: AED 595.00 (Inclusive of VAT)

Qty:

Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.

OUTPUT TYPE : RELAY or BINARY 0/5V
SUPPLY VOLTAGE : 230 V ac
SIZE : 48 x 96 x 93
TEMPERATURE RANGE : -200 → +850 (PT100) °C, -200 → +850 (PT1000) °C, -50 → +1200 (Type J Thermocouple) °C, -50 → +1300 (Type N Thermocouple) °C, -50 → +1372 (Type K Thermocouple) °C, -50 → +400 (Type T Thermocou
DISPLAY TYPE : LED
IP RATING : IP20, IP65
HS Code :
Lead Time : 3 - 4 Weeks
VIEW MORE PRODUCT DETAILS

2 year warranty
100% Guaranteed Warranty

Download Product Catalogue

Free Shipping Across UAE
When you spend above 699 AED

100% Genuine Products
Sourced from Trusted Independent Suppliers

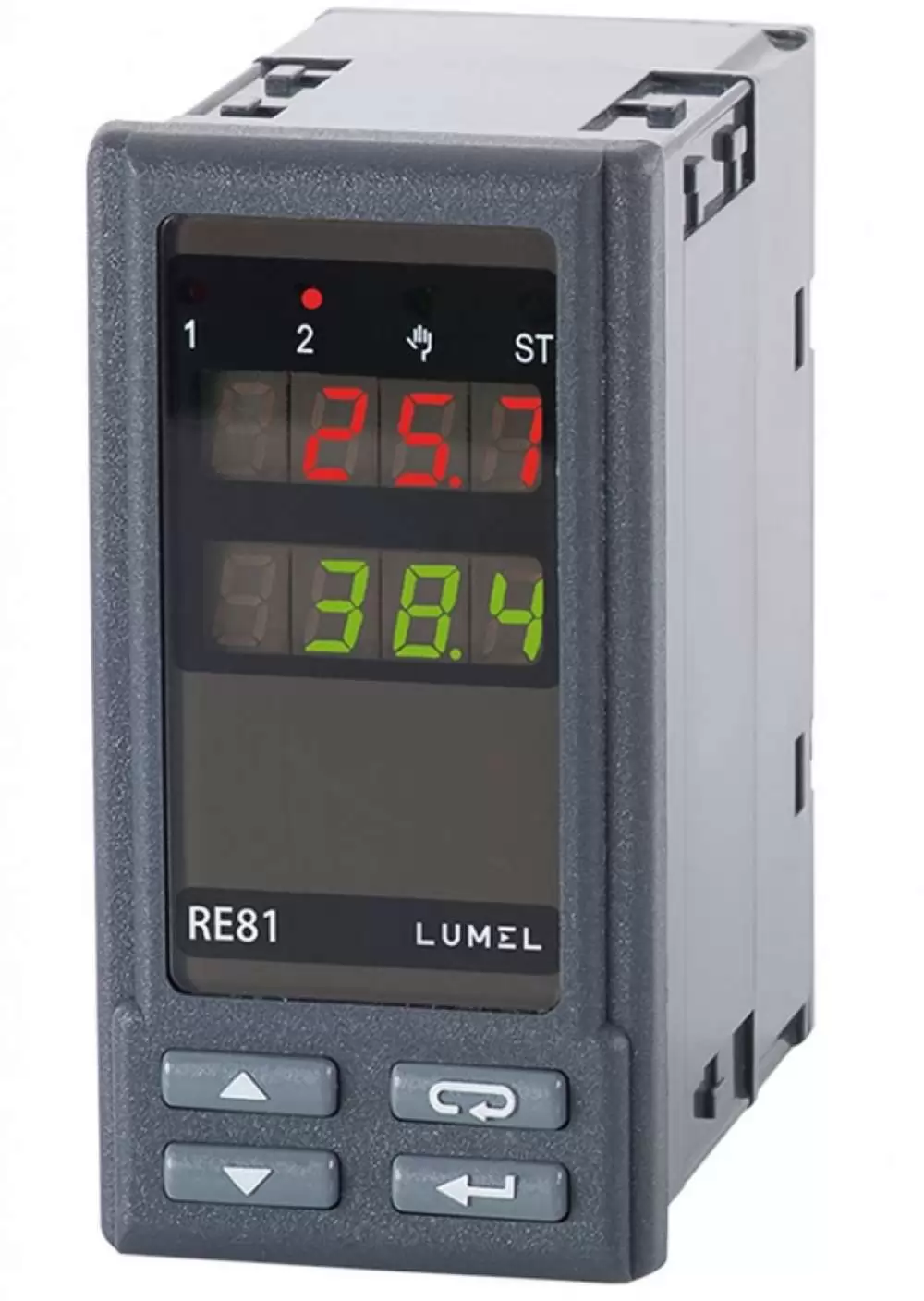

LUMEL Temperature Controller PID, 2 Output, Fixed input Configurable using PD14 -  RE81

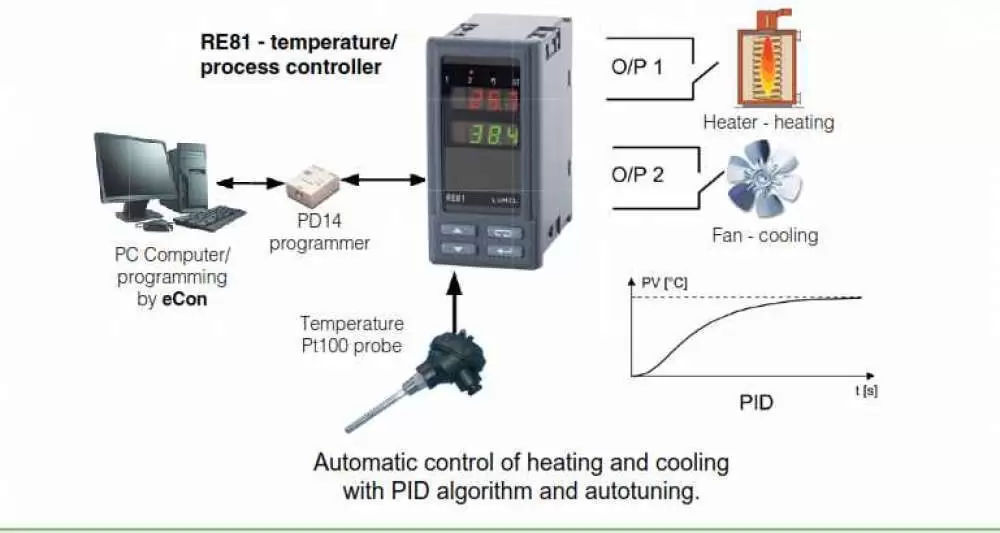

Digital controller RE81 type is destined to control temperature in furnaces, dryers, injection moulding machines and others.


  • Control acc. to:
    • PID algorithm
    • ON/OFF algorithm
    • heating/cooling algorithm
    • step-by-step control
  • Direct co-operation with:
    • resistance thermometer (Pt100)
    • or thermocouple (J, K, S)

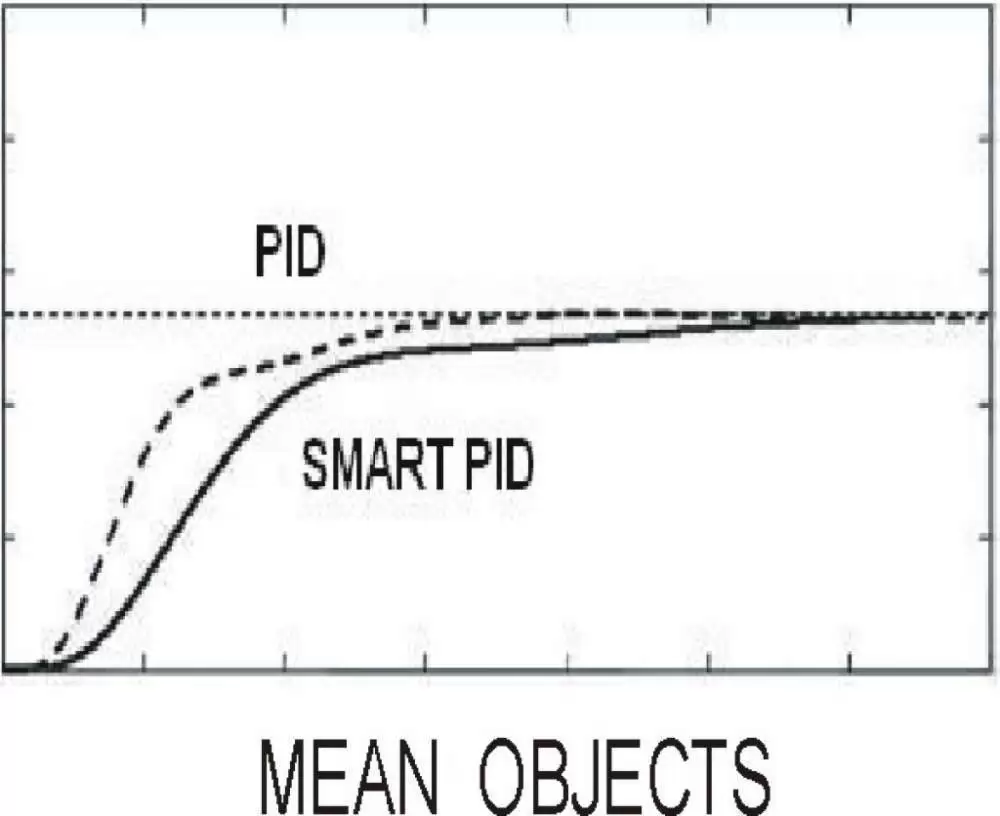

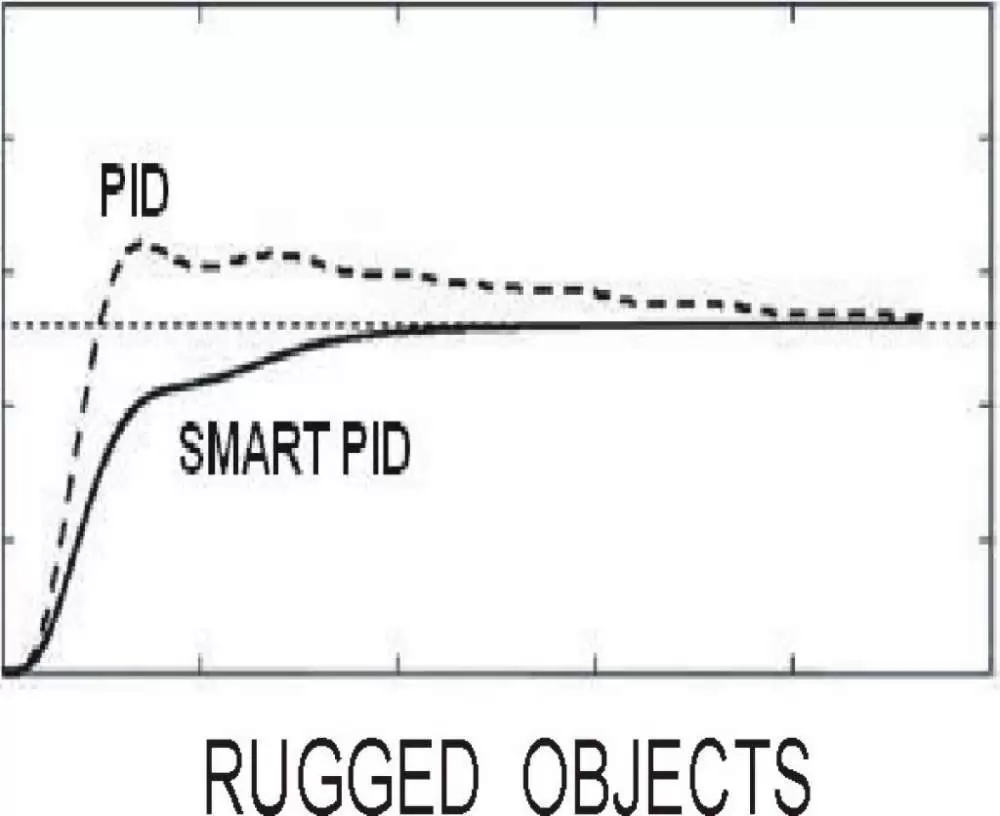

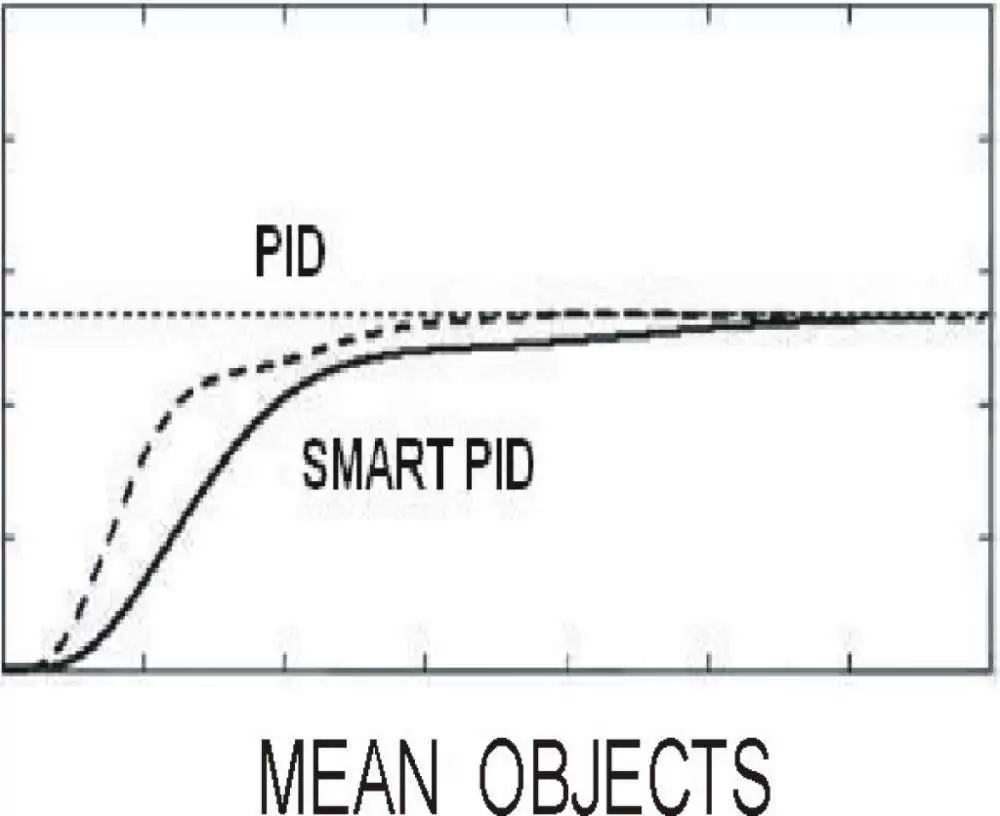

  • Automatic selection of PID parameters (acc. to the innovative SMART PID technology).
    • SMART PID Technology:
      • self-acting and precise selection of PID settings,
      • effective  control algorithm,
      • easy and simple solution for technical service,
      • lack of overshoots or small overshoots for a large range of objects in the automatic process of PID parameter selection.
  • 2 configurable control outputs:
    • relay output or
    • voltage output for SSR relay control
  • Configuration by means of keys or PD14 programmer and free eCon program
  • Error signaling by means of messages
  • IP65 protection level
  • Password protection
  • External dimensions: 48 x 96 x 93mm
  • Specifications

    BrandLUMEL
    Model NumberLUMEL RE81
    OUTPUT TYPE RELAY or BINARY 0/5V
    SUPPLY VOLTAGE 230 V ac
    SIZE 48 x 96 x 93
    TEMPERATURE RANGE -200 → +850 (PT100) °C, -200 → +850 (PT1000) °C, -50 → +1200 (Type J Thermocouple) °C, -50 → +1300 (Type N Thermocouple) °C, -50 → +1372 (Type K Thermocouple) °C, -50 → +400 (Type T Thermocou
    DISPLAY TYPE LED
    IP RATING IP20, IP65
    MOUNTING TYPE PANEL MOUNT
    Lead Time 3 - 4 Weeks
    Warranty 2 year warranty
