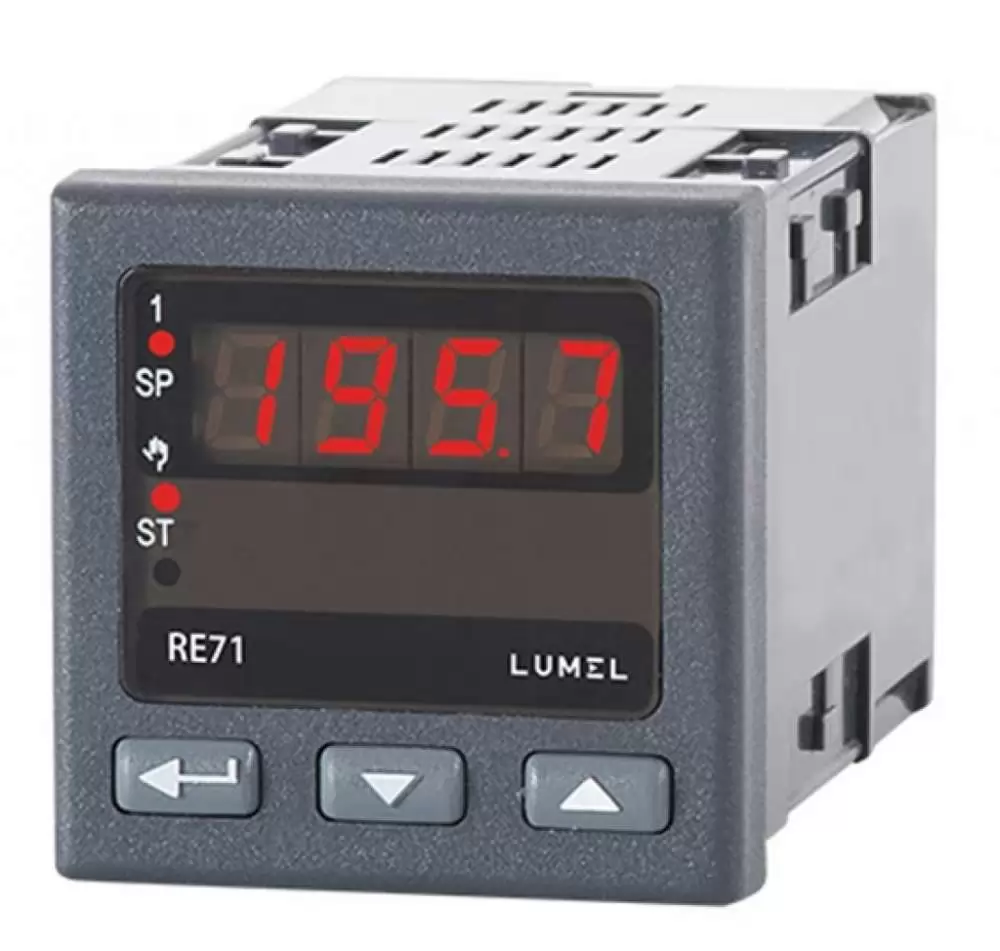

LUMEL Temperature Controller PID, 1 Output, Programmable input RE71
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
OUTPUT TYPE : RELAY or BINARY 0/5V
SUPPLY VOLTAGE : 230 V ac
SIZE : 48 X 48 X 93 Mm
NUMBER OF OUTPUTS : 1
MINIMUM TEMPERATURE SETTING : 0°C
MAXIMUM TEMPERATURE SETTING : +50°C
HS Code :
Lead Time : 3 - 4 Weeks
VIEW MORE PRODUCT DETAILS
Related Products

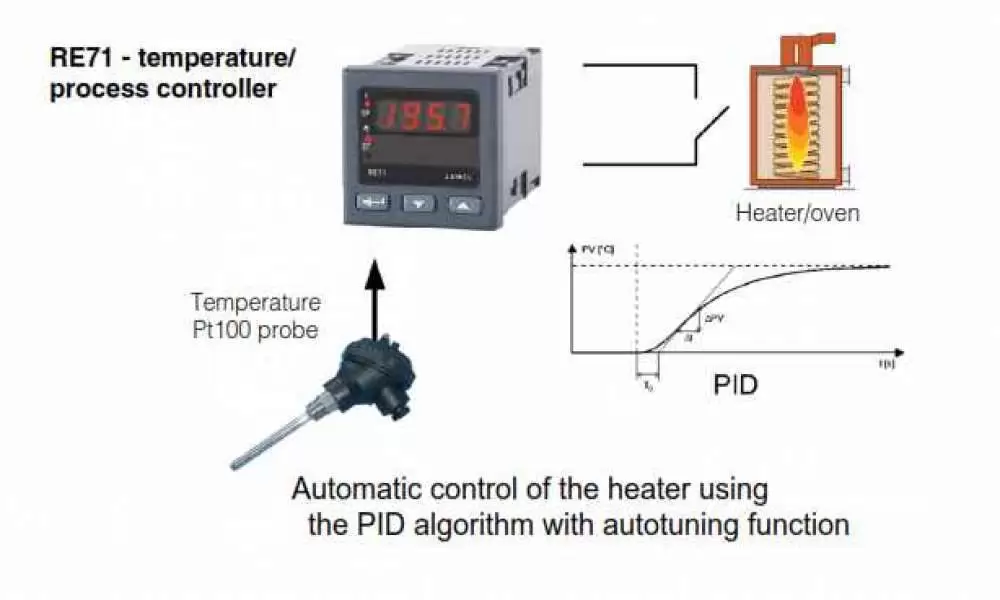

Digital controller RE71 type is destined to control temperature in furnaces, dryers, injection moulding machines and others.
- Control acc. to the PID or ON/OFF algorithm.
- Direct co-operation with:
- resistance thermometer (Pt100)
- or thermocouple (J, K, S)
- Automatic selection of PID parameters (acc. to the new innovative SMART PID technology).
- SMART PID Technology:
- self-acting and precise selection of PID settings,
- effective control algorithm,
- easy and simple solution for technical service,
- lack of overshoots or small overshoots for a large range of objects in the automatic process of PID parameter selection.
- SMART PID Technology:
- One control output:
- relay output or
- voltage output for SSR relay control.
- Manual control mode.
- IP65 protection level
- Password protection
- External dimensions: 48 x 48 x 93mm
Specifications
| Brand | LUMEL |
| Model Number | LUMEL RE71 |
| OUTPUT TYPE | RELAY or BINARY 0/5V |
| SUPPLY VOLTAGE | 230 V ac |
| SIZE | 48 X 48 X 93 Mm |
| NUMBER OF OUTPUTS | 1 |
| MINIMUM TEMPERATURE SETTING | 0°C |
| MAXIMUM TEMPERATURE SETTING | +50°C |
| TEMPERATURE RANGE | -200 → +850 (PT100) °C, -200 → +850 (PT1000) °C, -50 → +1200 (Type J Thermocouple) °C, -50 → +1300 (Type N Thermocouple) °C, -50 → +1372 (Type K Thermocouple) °C, -50 → +400 (Type T Thermocou |
| DISPLAY TYPE | LED |
| IP RATING | IP20, IP65 |
| MOUNTING TYPE | PANEL MOUNT |
| Lead Time | 3 - 4 Weeks |
| Warranty | 2 year warranty |
