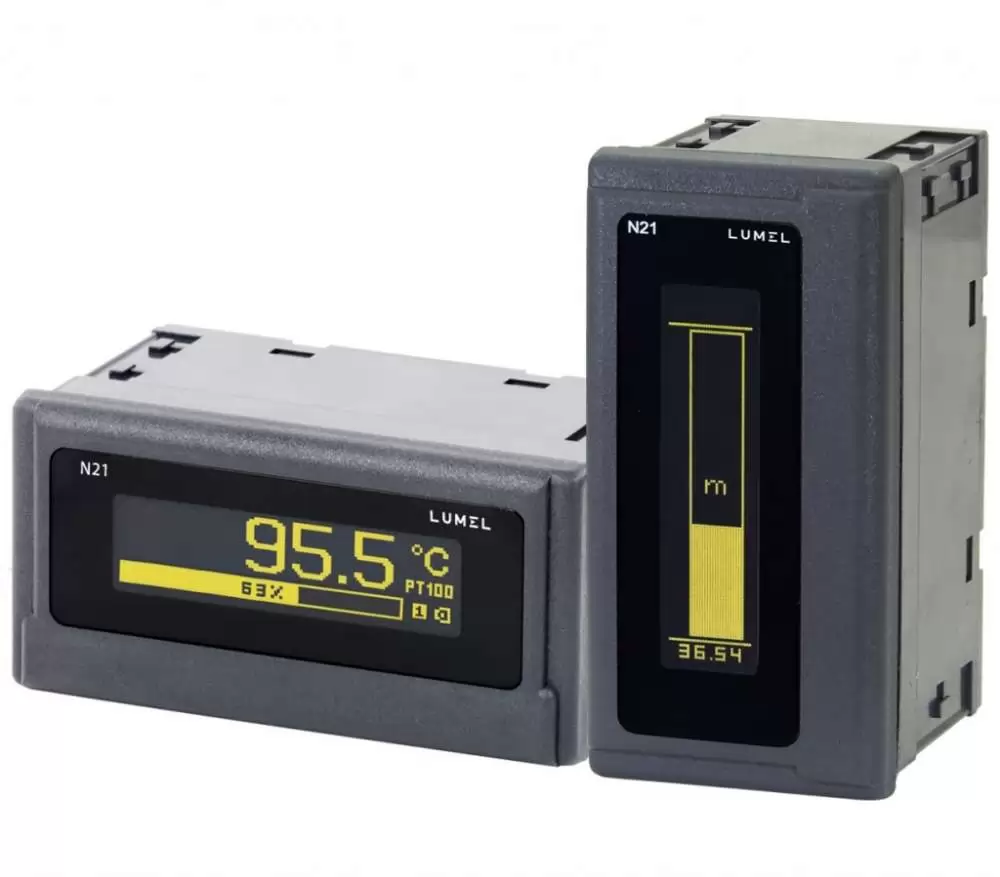

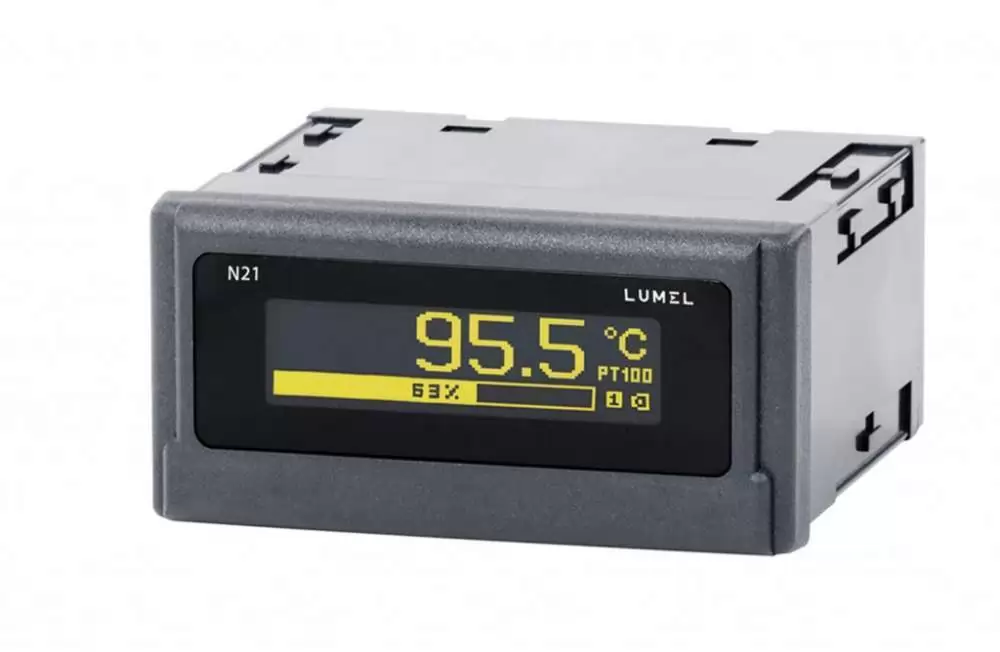

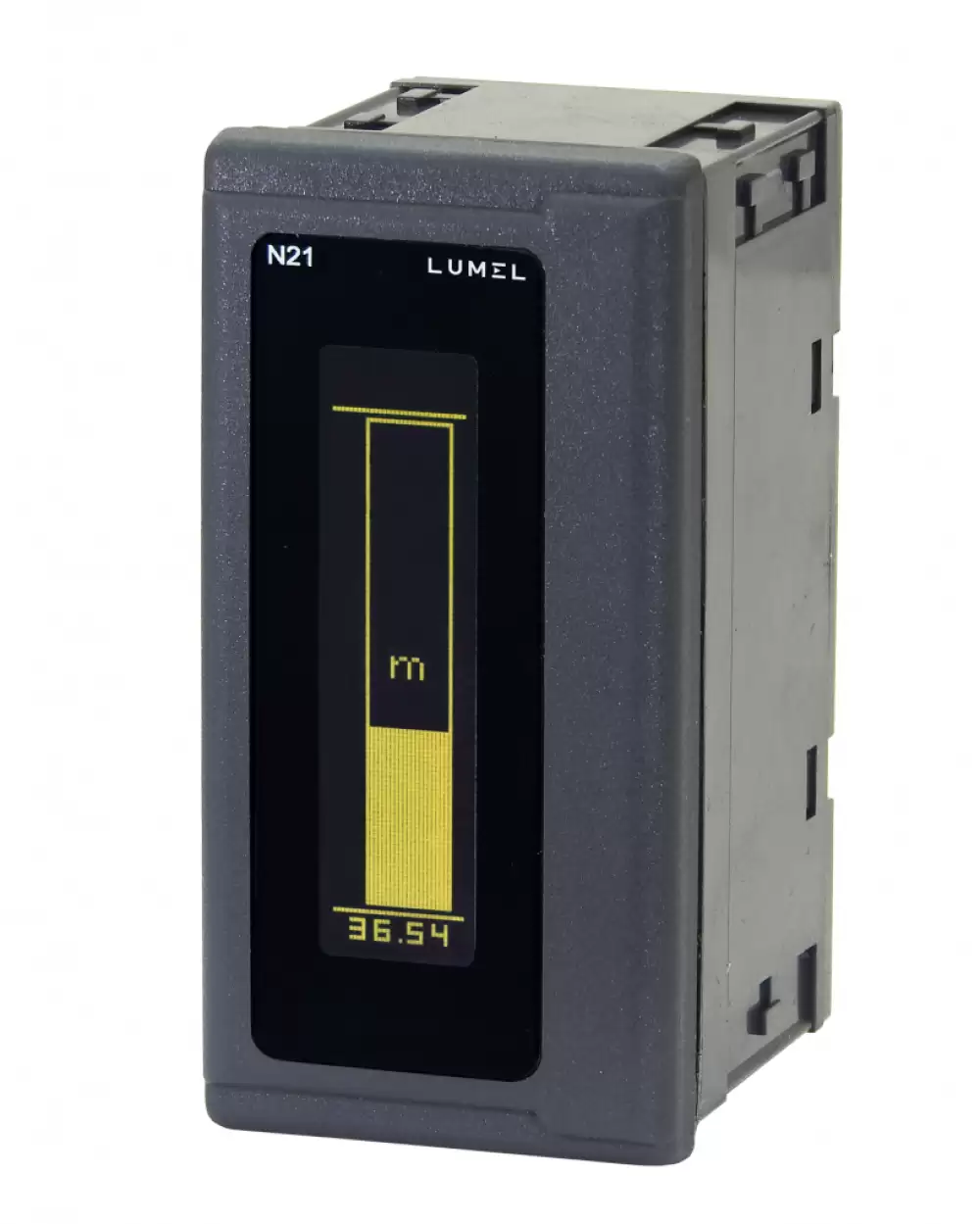

LUMEL LED Digital Panel Meters with Universal input for measurements of DC Voltages, DC Currents or Temperature with mini USB OLED Display - N21
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
SUPPLY VOLTAGE : Universal Voltage 24V....230 AC/DC
PARAMETERS MEASURED : CURRENT
PARAMETERS MEASURED : VOLTAGE
PARAMETERS MEASURED : TEMPERATURE
TYPE : HORIZONTAL/VERTICAL
DISPLAY TYPE : OLED
HS Code :
Lead Time : 3 - 4 Weeks
VIEW MORE PRODUCT DETAILS
Related Products
-
OLD MODEL NUMBER EM1320
ZIEGLER, DIGITAL ENERGY METER, 3 PHASE 3W/4W, I/P: 100-500V ...AED 325.00 -
OLD PART NUMBER EINE 3V & ZIM PROE 3V
ZIEGLER, DIGITAL VOLTMETER AC, 3 PHASE, 96x96, I/P: 100-500...AED 85.00 -
OLD MODEL NUMBER MFM3430
ZIEGLER, DIGITAL MULTIFUNCTION METER, 3 PHASE, I/P: 100-600V...AED 775.00
N21 is an ideal soluttion for visualisation of industrial processes. Universal input, universal supply and universal OLED display allow to apply meter in many applications.
- Universal measuring input (for standard signals and cooperation with temperature sensors).
- Relay alarm output.
- Universal supply voltage from 24 V up to 230 V a.c./d.c.
- Supply of object transducers 24 V d.c.
- Universal OLED display (horizontal or vertical, user-programmable by using the appropriate firmware).
- Meter configuration through miniUSB connector with eCon software.
- Programmable parameters in eCon software:
- selection of measured value,
- rescaling of indications (individual characteristic),
- accuracy of measured value (decimal point),
- alarm output mode,
- measurement averaging time,
- firmware update (horizontal or vertical version),
- defining your own unit,
- language selection.
- Protection grade: IP65
- External dimensions: 48 x 96 x 64mm.
Specifications
| Brand | LUMEL |
| Model Number | LUMEL N21 |
| SUPPLY VOLTAGE | Universal Voltage 24V....230 AC/DC |
| PARAMETERS MEASURED | CURRENT |
| PARAMETERS MEASURED | VOLTAGE |
| PARAMETERS MEASURED | TEMPERATURE |
| TYPE | HORIZONTAL/VERTICAL |
| DISPLAY TYPE | OLED |
| IP RATING | IP65 |
| Lead Time | 3 - 4 Weeks |
| Warranty | 2 year warranty |
