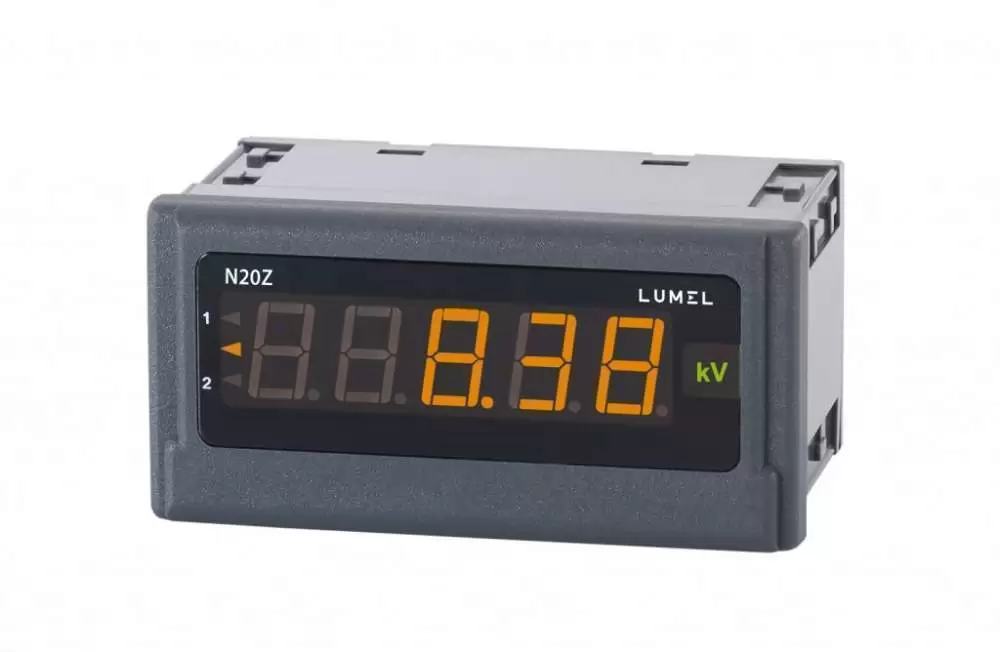

LUMEL LED Digital Multi-Function Panel Meters Input AC, for measurements of DC Voltages, DC Currents or Temperature with PD14 Programmable, 2 OC outputs and Red+Green+Orange Display - N20Z
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
PARAMETERS MEASURED : CURRENT
PARAMETERS MEASURED : VOLTAGE
PARAMETERS MEASURED : TEMPERATURE
TYPE : 5 LED Digit
DISPLAY TYPE : DIGITAL
IP RATING : IP65
HS Code :
Lead Time : 3 - 4 Weeks
VIEW MORE PRODUCT DETAILS
he N20Z meter is a digital programmable panel instrument destined for measurements of a.c. voltages, a.c. currents, or frequency. The readout display is a LED display which enables the exposition of results in red, green or orange colour.
- input:
- a.c. current: 1 A, 5 A,
- a.c. voltage: 100 V, 250 V, 400 VÂ
- frequency: 20...500 Hz. - 2 alarm outputs of OC type (4 types of alarms)Â signaled by highlight of the alarm index,
- protection level ensured by the housing: IP65,
- readout field: 5 three-colour LED displays of 14 mm height,
- highlighted measuring units, Â
- supply: 85...253 V a.c./d.c. or 20...40 V a.c./d.c.
- overall dimensions: 96 x 48 x 64 mm.
- display colour, individually in three intervals,
- thresholds of displayed overflows,
- display precision of the result (decimal point),
- highlight of the unit,
- kind of the measured signal a.c. or a.c. + d.c. (True RMS),
- averaging time of the measurement,
- recounting of indications (individual characteristic),
- two alarms of OC type operating in six working modes.
For the configuration of the N20Z is destined free eCon software. The meter must be connected with the PC computer through a PD14 converter. Parameters which can be reprogrammed are as follows:
Specifications
Brand | LUMEL |
Model Number | LUMEL N20Z |
PARAMETERS MEASURED | CURRENT |
PARAMETERS MEASURED | VOLTAGE |
PARAMETERS MEASURED | TEMPERATURE |
TYPE | 5 LED Digit |
DISPLAY TYPE | DIGITAL |
IP RATING | IP65 |
Lead Time | 3 - 4 Weeks |
Warranty | 2 year warranty |
