LUMEL LED Digital Multi-Function Panel Meters for measurement of DC Voltage or DC Current, Temperature from PT100 sensors J,K thermocouples, AC Voltage AC Current with PD14 Programmable N24
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
PARAMETERS MEASURED : CURRENT
PARAMETERS MEASURED : VOLTAGE
TYPE : 4 LED Digit
DISPLAY TYPE : DIGITAL
IP RATING : IP65
HS Code :
Lead Time : 3 - 4 Weeks
VIEW MORE PRODUCT DETAILS
Related Products
-
OLD PART NUMBER WAS EINE 3A
ZIEGLER, DIGITAL AMMETER AC, 3 PHASE, 96x96, I/P: 1/5A 50/60...AED 185.00

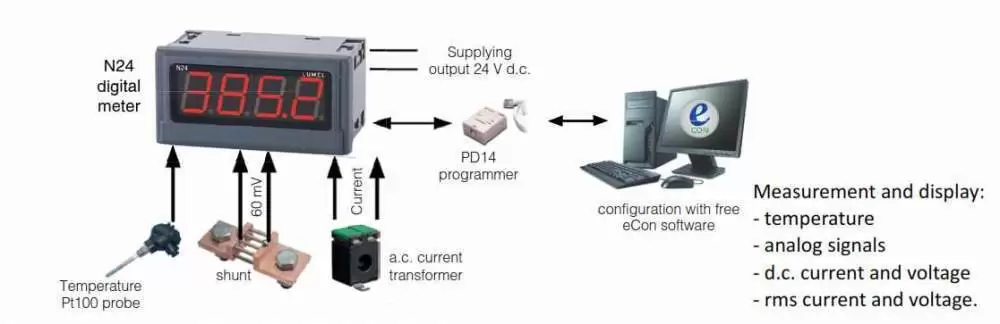

Indicators of N24 series are destined for measurement of d.c. voltage or d.c. current, temperature from Pt100 sensors and J, K thermocouples, a.c. voltage and a.c. current.
Thanks to competitive price they are ideal solution for low-budget applications.
4-digit LED display, digits of 20 mm high,possible configuration of parameters through the PD14 programmer and the free eCon software
- precision of displayed results (decimal point),
- measurement averaging time,
- recounting of indications (individual characteristic),
- automatic or manual compensation: temperature of cold junction for measurements with thermocouples or wire resistance for Pt100 sensors (N24T),
- supply: 85…253 V a.c./d.c. or 20…24 V a.c./d.c., 110 V a.c., 230 V a.c.
- protection grade: IP65
- overall dimensions: 96 x 48 x 64 mm
Specifications
| Brand | LUMEL |
| Model Number | LUMEL N24 |
| PARAMETERS MEASURED | CURRENT |
| PARAMETERS MEASURED | VOLTAGE |
| TYPE | 4 LED Digit |
| DISPLAY TYPE | DIGITAL |
| IP RATING | IP65 |
| Lead Time | 3 - 4 Weeks |
| Warranty | 2 year warranty |
