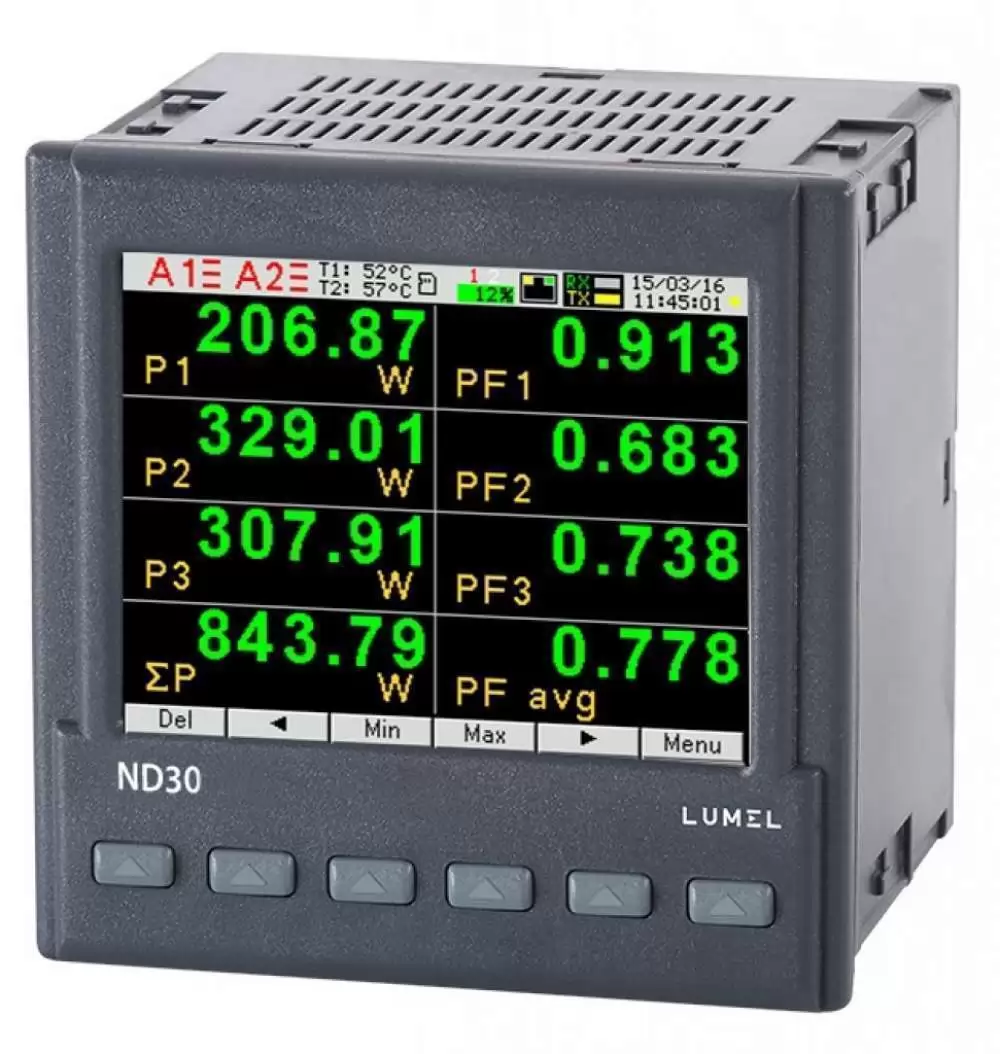

LUMEL LED Digital 3-Phase Power Network Analyzer - Configurable Measurement of 54 Parameters LCD Display with Recording, Graphical Screen, with Ethernet RS-485 ND30
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
PARAMETERS MEASURED : POWER & ENERGY
TYPE : DIGITAL
DISPLAY TYPE : LED
HS Code :
Lead Time : 3 - 4 Weeks
VIEW MORE PRODUCT DETAILS
Product features:
- Measurement and recording of 54 power network parameters, including current and voltage harmonics up to 63rd, in 1-phase 2-wire or 3-phase 3 or 4-wire balanced and unbalanced systems.

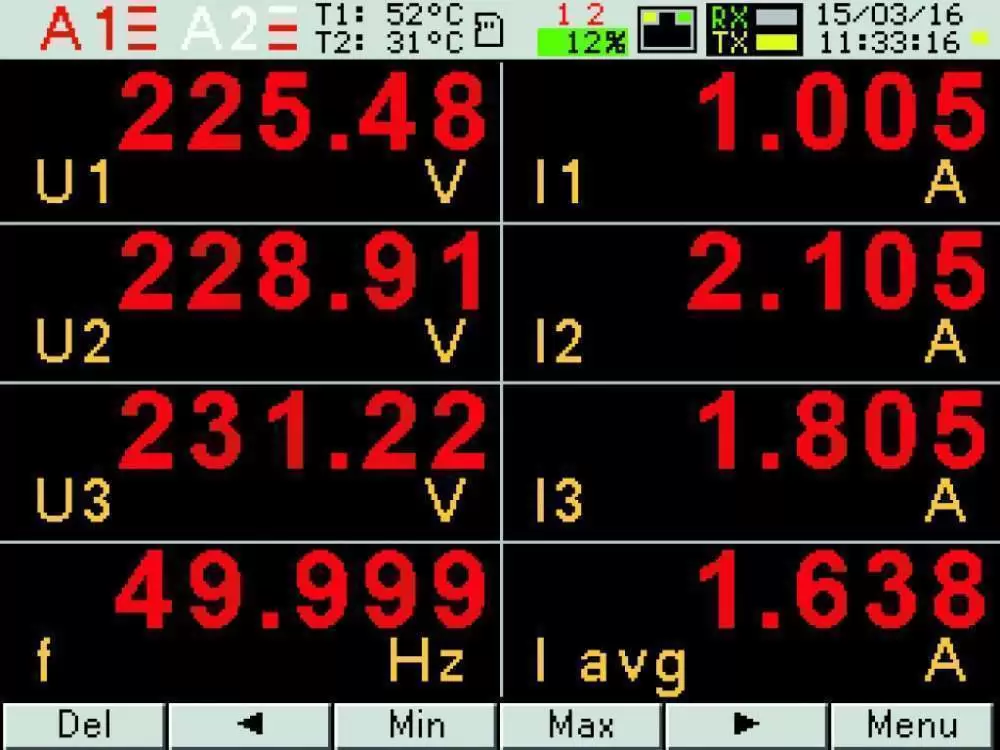

- Color graphical display: LCD TFT 3,5’’, 320 x 240 pixels, fully configurable by user

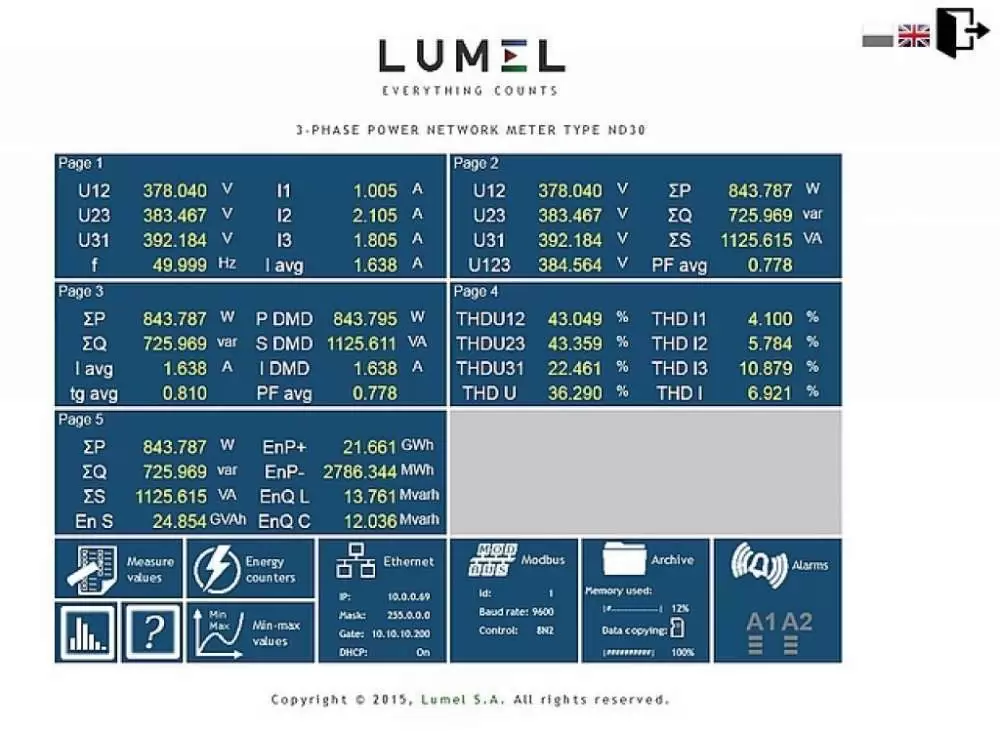

- 10 pages, 8 parameters in each

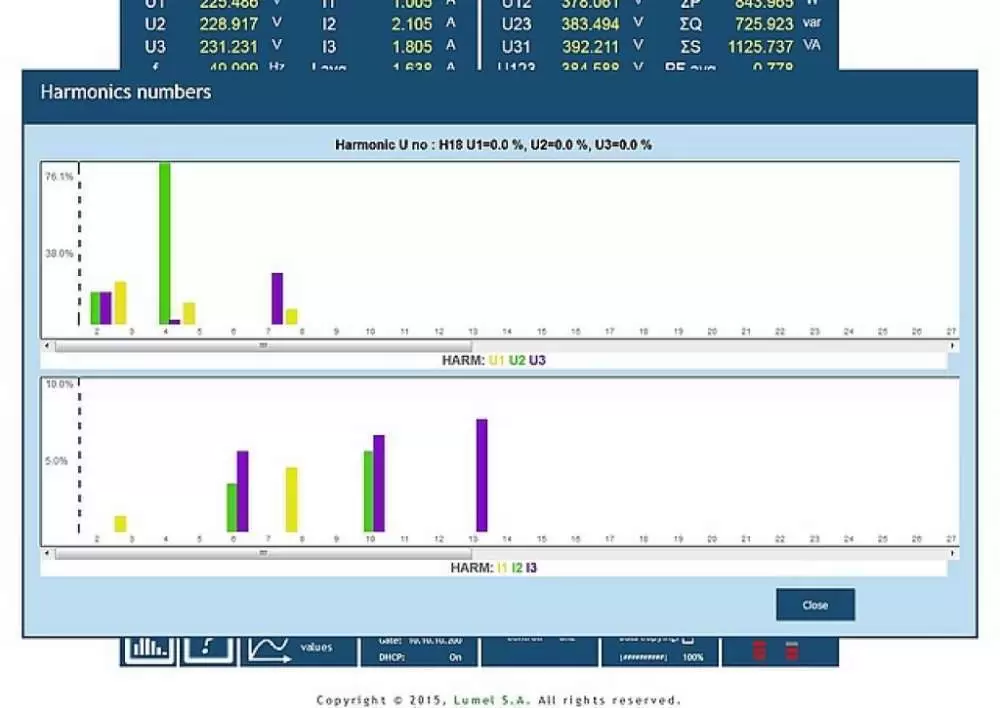

- 2 pages with harmonic presentations

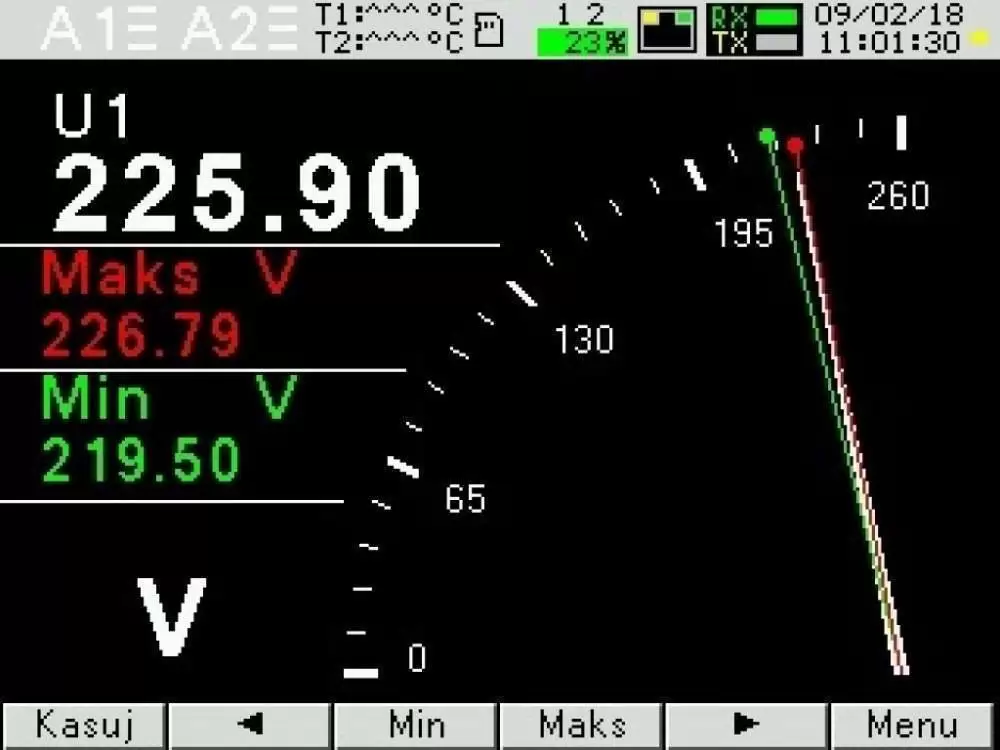

- 1 page with analog indication
- Indications include the values of programmed ratios.
- Memory of minimum and maximum values.
- 2 configurable alarm outputs.
- Mode of supervisory relay for alarm outputs - function available from 02.2019.
Function can be ordered with new device as well as activated on the devices which have been alredy installed on the facility after softwate upgrade (from 1.07 version). To make function active, please order appropriate licence key (here) - LKEY type.
Supervisory relay mode enables detection of following events:- voltage drop or growth
- current drop or growth
- phase loss
- current or voltage unbalance
- phase sequence
- User can specify:
- the thresholds of monitored events
- monitoring of phase relay
- memory of relay state
- deley of switch-on/off relay
- relay state after the event has occured.
- Mode of supervisory relay for alarm outputs - function available from 02.2019.
- Optional: analog output 0/4...20 mA and 2 x Pt100 inputs (e.g for measurement of transformer temperature).
- Logging of up to 32 measured parameters in the internal memory 8 GB (option).
- Digital output RS-485 - MODBUS protocol.
- Modern and user-friendly Ethernet interface 10/100 BASE-T (option):
- protocol: MODBUS TCP/iP, HTTP, FTP,
- MQTT protocol - available from 02.2019.
Protocol can be ordered with new device as well as activated on the devices which have been alredy installed on the facility after softwate upgrade (from 1.07 version).
To make function active, please order appropriate licence key (here) - LKEY type - services: www server, ftp server, DHCP client.
- wide range of voltage supply
- 85..253 V a.c. or 90..300 V d.c.
- 20..40 V a.c or 20..60 V d.c.
- Programming of parameters using free eCon software.
- Battery backup RTC.
- Overall dimensions: 96 x 96 x 77 mm.
