LUMEL LED Digital 3-Phase Power Network Analyzer - Configurable Measurement of 54 Parameters LCD Display with Recording, Graphical Screen, with Ethernet Profinet, RS-485 ND30PNET

Now: AED 2,195.00 (Inclusive of VAT)

Qty:

Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.

PARAMETERS MEASURED : POWER & ENERGY
TYPE : DIGITAL
DISPLAY TYPE : LED
HS Code :
Lead Time : 3 - 4 Weeks
VIEW MORE PRODUCT DETAILS

2 year warranty
100% Guaranteed Warranty

Download Product Catalogue

Free Shipping Across UAE
When you spend above 699 AED

100% Genuine Products
Sourced from Trusted Independent Suppliers

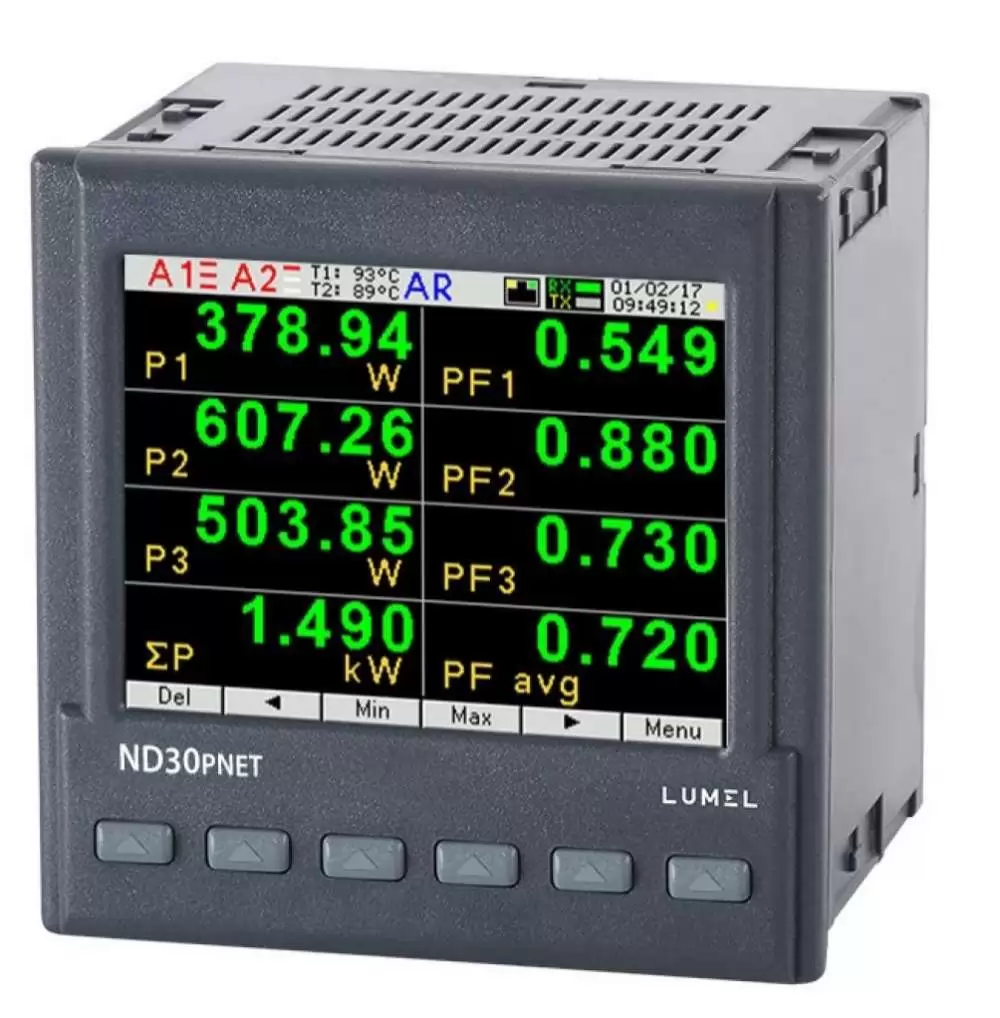

LUMEL LED Digital 3-Phase Power Network Analyzer -  Configurable Measurement of 54 Parameters LCD Display with Recording, Graphical Screen, with Ethernet / Profinet, RS-485 ND30PNET

Measurement of 54 parameters, harmonics up to 51st, graphical screen-fully configurable by a user and Profinet interface - these are just some advantages of our new power network meter ND30PNET type.

Product features:

  • Measurement and recording of 54 power network parameters, including current  and voltage harmonics up to 51st, in 1-phase 2-wire or 3-phase 3 or 4-wire balanced and unbalanced systems.
  • Color graphical display: LCD TFT  3,5’’, 320 x 240 pixels, fully configurable by user (10 pages, 8 parameters in each)
  • Indications include the values of programmed ratios.
  • 2 configurable alarm outputs.
  • Optional: analog output 0/4...20 mA and 2 x Pt100 inputs (e.g for measurement of transformer temperature).
  • Digital output RS-485 - MODBUS protocol.
  • Modern and user-friendly Ethernet / interface Profinet 2.2 :
  • Wide range of voltage supply
    • 85..253 V a.c. or 90..300 V d.c.
    • 20..40 V a.c or 20..60 V d.c.
  • Programming of parameters using free eCon software.
  • Battery backup RTC.
  • Overall dimensions: 96 x 96 x 77 mm.
Extra charges (for ND30PNET): 1 analogue output and 2 inputs Pt100 @ 190.00 each
