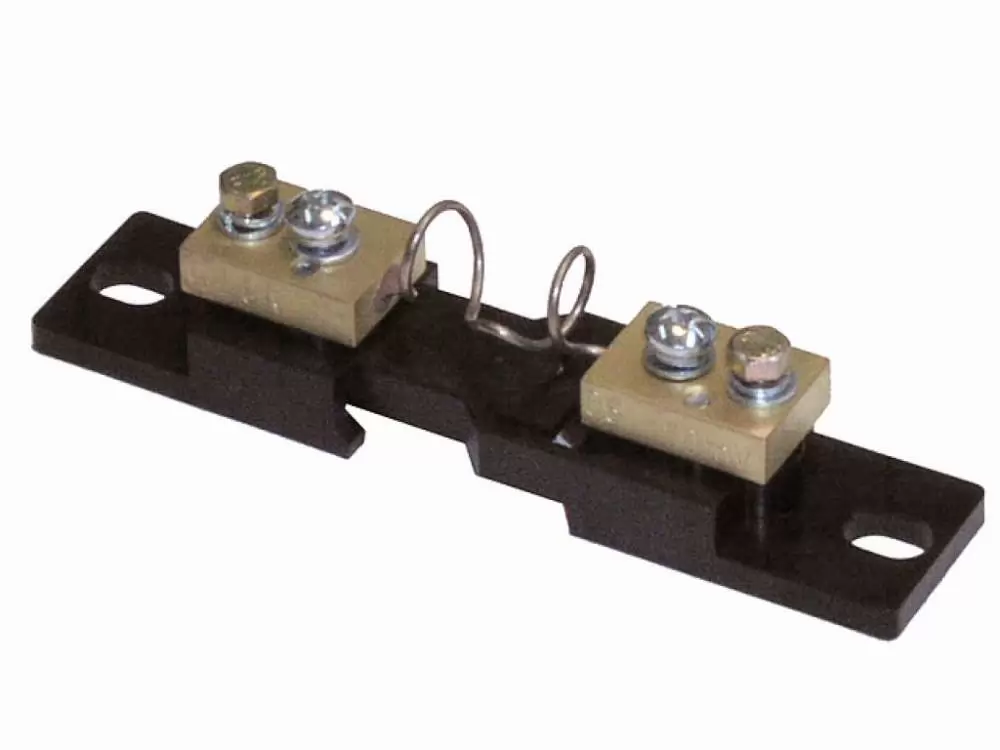

LUMEL DC SHUNT B2 100A60mV, standard coating, with screws, CLASS 0.2 B2 060100AD0100M0 Shunt 60mV, LUMEL POLAND
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
CURRENT RATING : 100A
ACCURACY CLASS : CLASS 0.2
SECONDARY CURRENT : 60mV
HS Code :
Lead Time :
VIEW MORE PRODUCT DETAILS
Related Products
LUMEL DC SHUNT B2 100A60mV, standard coating, with screws, CLASS 0.2 B2 060100AD0100M0 Shunt 60mV, LUMEL POLAND
Measuring shunts B2 type are destined to extend measuring ranges of d.c. ammeters, wattmeters and electrodynamic or ferrodynamic counters
- voltage drops: 60mV,
- accuracy class:
- 0.2 for measuring range ≤ 2500 A
- 0.5 for measuring range > 2500 A
- catch clamping on a rail or to the base
- external dimensions: depending on the execution.
Specifications
| Brand | LUMEL |
| Model Number | B2 060100AD0100M0 |
| CURRENT RATING | 100A |
| ACCURACY CLASS | CLASS 0.2 |
| SECONDARY CURRENT | 60mV |
| Lead Time | |
| Warranty | 1 year warranty |
