ELSNER KNX HEATING COOLING ACTUATORS 8 OUTPUTS KNX K8 N 70321
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
PROTOCOL : KNX
IP RATING : IP20
RELATIVE HUMIDITY : < 95%
OPERATING TEMPERATURE : -10°C to 70°C
HS Code :
Lead Time : 10-15 DAYS
VIEW MORE PRODUCT DETAILS
KNX K
KNX Heating/Cooling Actuators
The KNX K actuators have got internal temperature controllers and output channels for controlling heating or cooling systems. The temperature controllers can control both the outputs on the KNX K and other climate control system on the KNX Bus.
In automatic mode, the temperature controllers are set at nominal temperatures for different modes. This way, it is easy to switch between the modes, comfort, standby, eco and building protection. The switch is made via an object e. g. via a manual switch, time switch or sensor switch outputs in the KNX-System.
The buttons on the device allow for direct manual switching of the connected systems. LEDs show whether the output channel was manually operated or is running in an automatic mode.
The KNX K actuators have got internal temperature controllers and output channels for controlling heating or cooling systems. The temperature controllers can control both the outputs on the KNX K and other climate control system on the KNX Bus.
In automatic mode, the temperature controllers are set at nominal temperatures for different modes. This way, it is easy to switch between the modes, comfort, standby, eco and building protection. The switch is made via an object e. g. via a manual switch, time switch or sensor switch outputs in the KNX-System.
The buttons on the device allow for direct manual switching of the connected systems. LEDs show whether the output channel was manually operated or is running in an automatic mode.

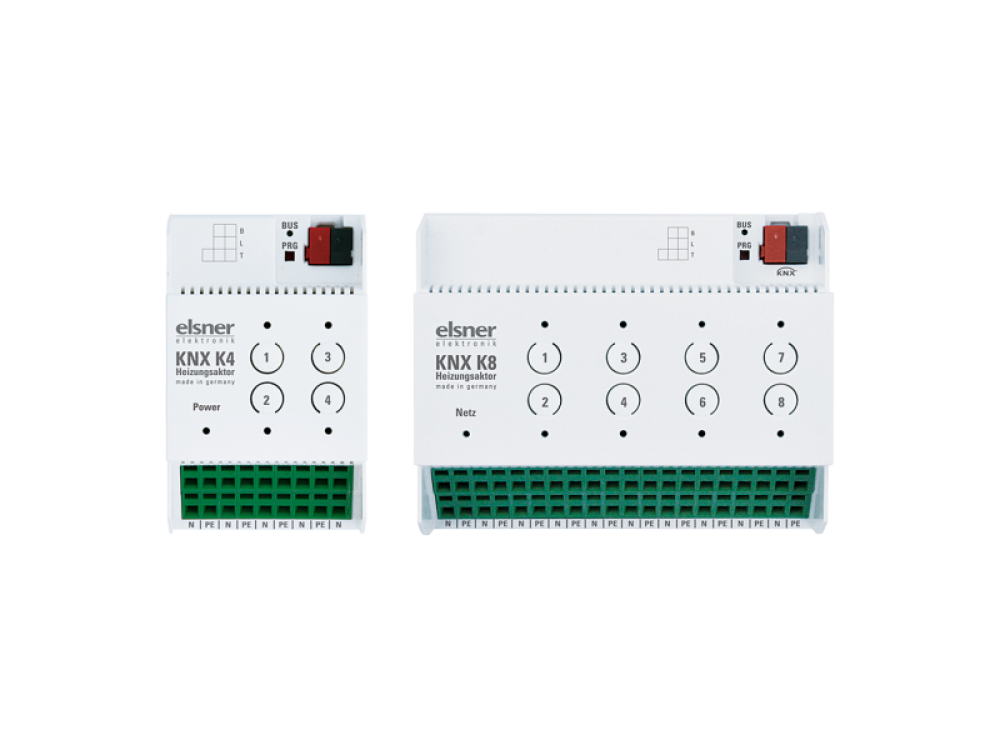

Models:
N° 70320 KNX K4, 4 outputs
N° 70321 KNX K8, 8 outputs
N° 70320 KNX K4, 4 outputs
N° 70321 KNX K8, 8 outputs

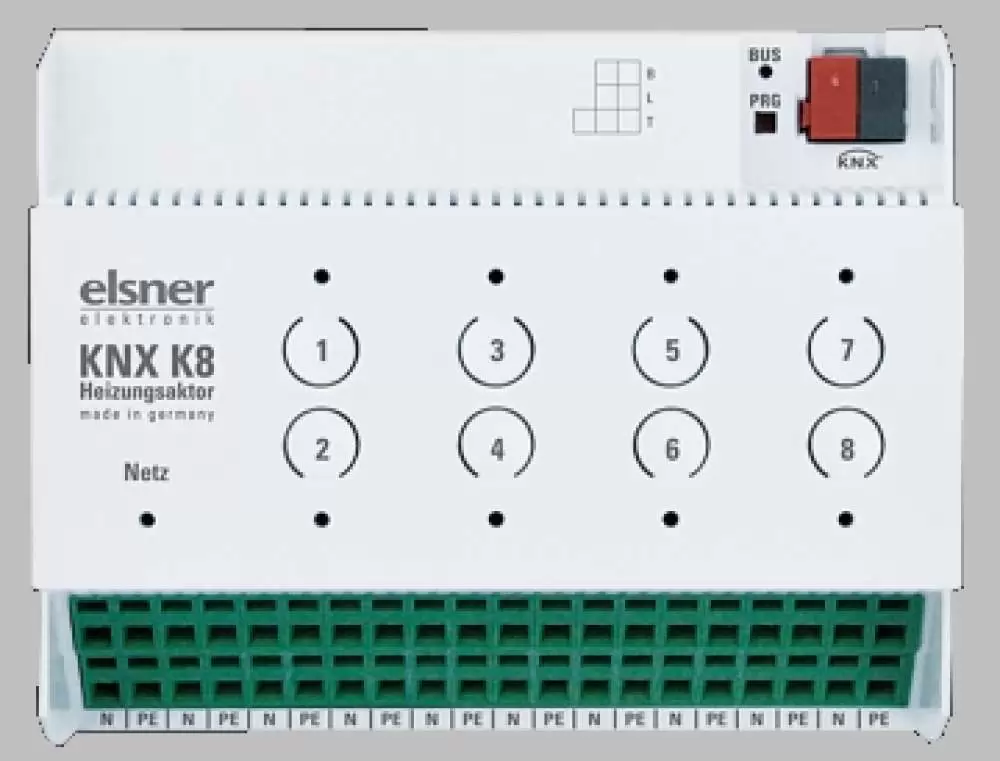

KNX 8:
- 8 internal, independent temperature regulators with automatic controls for the heating and cooling controls (one or two step heating and cooling)
- 8 output channels (230 V AC, 8 Watt per output) with pulse width modulation control (PWM) for actuators
- Keypad field 8 buttons and status LEDs
Configuration is made using the KNX software ETS
Housing Plastic Colour White Mounting Series installation on mounting rail Protection category IP 20 Ambient temperature Operation -20…+70°C, storage -55…+90°C Ambient humidity max. 95% RH, avoid condensation Power on bus: 10 mA Data output KNX +/- bus connector terminal
Housing | Plastic |
Colour | White |
Mounting | Series installation on mounting rail |
Protection category | IP 20 |
Ambient temperature | Operation -20…+70°C, storage -55…+90°C |
Ambient humidity | max. 95% RH, avoid condensation |
Power | on bus: 10 mA |
Data output | KNX +/- bus connector terminal |
KNX K4
Dimensions approx. 53 x 88 x 60 (W x H x D, mm), 3 modules Weight approx. 110 g Operating voltage KNX bus voltage Outputs 4 x 230 V (OUT/N), not short-circuit-proof.
When connectiong one consumer load per separate channel (1 to 4):
Max. load for continuous operation: 8 W per channel
Max. switch-on current: 1.1 A per channel
Observe the specifications in the data sheet of the consumer load. Communication objects 125
Dimensions | approx. 53 x 88 x 60 (W x H x D, mm), 3 modules |
Weight | approx. 110 g |
Operating voltage | KNX bus voltage |
Outputs | 4 x 230 V (OUT/N), not short-circuit-proof. When connectiong one consumer load per separate channel (1 to 4): Max. load for continuous operation: 8 W per channel Max. switch-on current: 1.1 A per channel Observe the specifications in the data sheet of the consumer load. |
Communication objects | 125 |
KNX K8
Dimensions approx. 107 x 88 x 60 (W x H x D, mm), 6 modules Weight approx. 270 g Operating voltage 230V AC, 50 Hz Power consumption max. 2 W Outputs 8 x 230 V (OUT/N), not short-circuit-proof.
When connectiong one consumer load per separate channel
(1 to 8):
Max. load for continuous operation: 8 W per channel
Max. switch-on current: 1.1 A per channel
Observe the specifications in the data sheet of the consumer load. Communication objects 249
Dimensions | approx. 107 x 88 x 60 (W x H x D, mm), 6 modules |
Weight | approx. 270 g |
Operating voltage | 230V AC, 50 Hz |
Power consumption | max. 2 W |
Outputs | 8 x 230 V (OUT/N), not short-circuit-proof. When connectiong one consumer load per separate channel (1 to 8): Max. load for continuous operation: 8 W per channel Max. switch-on current: 1.1 A per channel Observe the specifications in the data sheet of the consumer load. |
Communication objects | 249 |
Specifications
Brand | ELSNER |
Model Number | ELSNER KNX KNX K8 N 70321 |
PROTOCOL | KNX |
IP RATING | IP20 |
RELATIVE HUMIDITY | < 95% |
OPERATING TEMPERATURE | -10°C to 70°C |
Lead Time | 10-15 DAYS |
