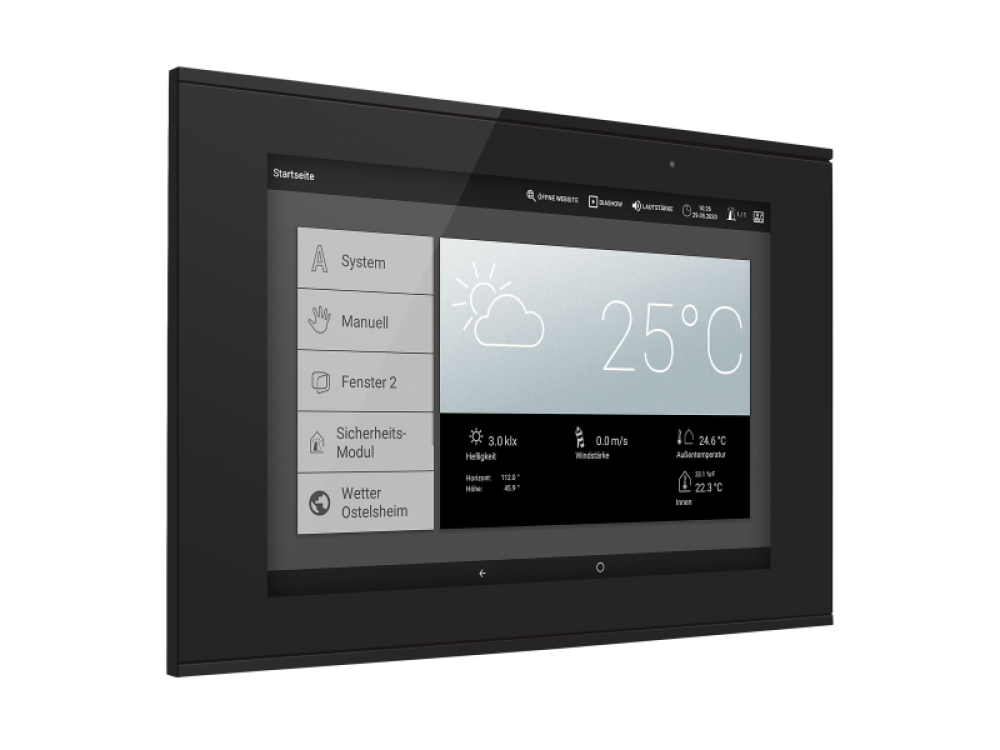

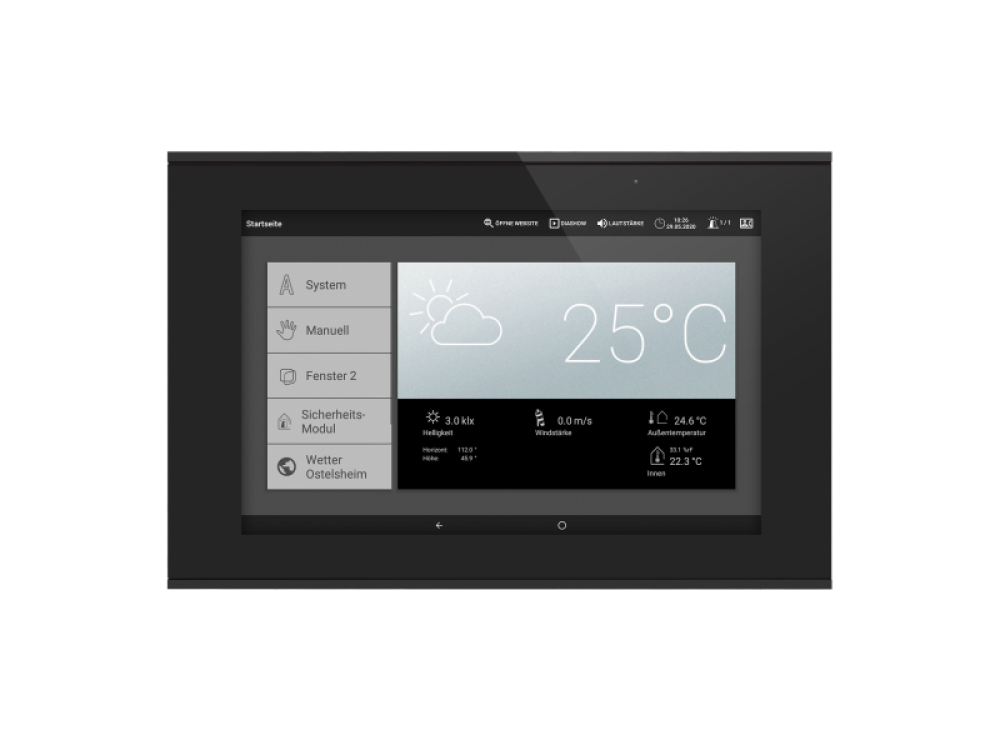

ELSNER KNX BUILDING CONTROL CENTRAL UNIT OPERATING UNIT CASACONNECT DIM.279X185, 1280X800 PIXELS 71200
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
PROTOCOL : KNX
BODY MATERIAL : PLASTIC
MOUNTING TYPE : FLUSH MOUNTING
RELATIVE HUMIDITY : 5...95% RH, avoid bedewing
SUPPLY VOLTAGE : 24 VDC
IP RATING : IP20
HS Code :
Lead Time : 10-15 DAYS
VIEW MORE PRODUCT DETAILS
Related Products
CasaConnect KNX
Building Control Center
The CasaConnect KNX Central Unit is a control unit for the KNX building bus system. The graphic touch screen and the integrated automatic functions allow easy central setting and operation of the technical equipment installed in the building. The basic configuration is carried out via the ETS. Please use these operating instructions to adjust the automatic functions to your requirements and to enable convenient manual operation.
KNX building control centre for manual and automatic control of the building services. Automatic system for shading control, ventilation control, room climate control, lighting control, security module
FUNCTIONS
- KNX control with access to the participants in the KNX building bus system
- Colour touch display 10.1-inch, for manual operation, system set up and or setting the basic and automatic functions
- Network connection by LAN or WLAN
- Browser for viewing websites, streaming, etc.

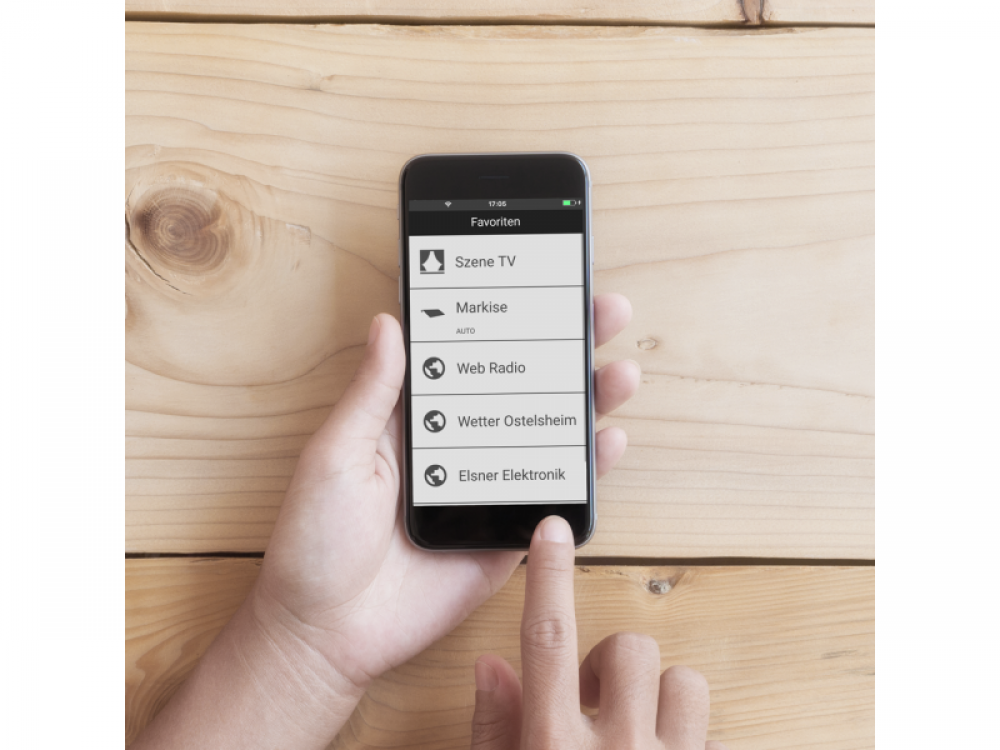

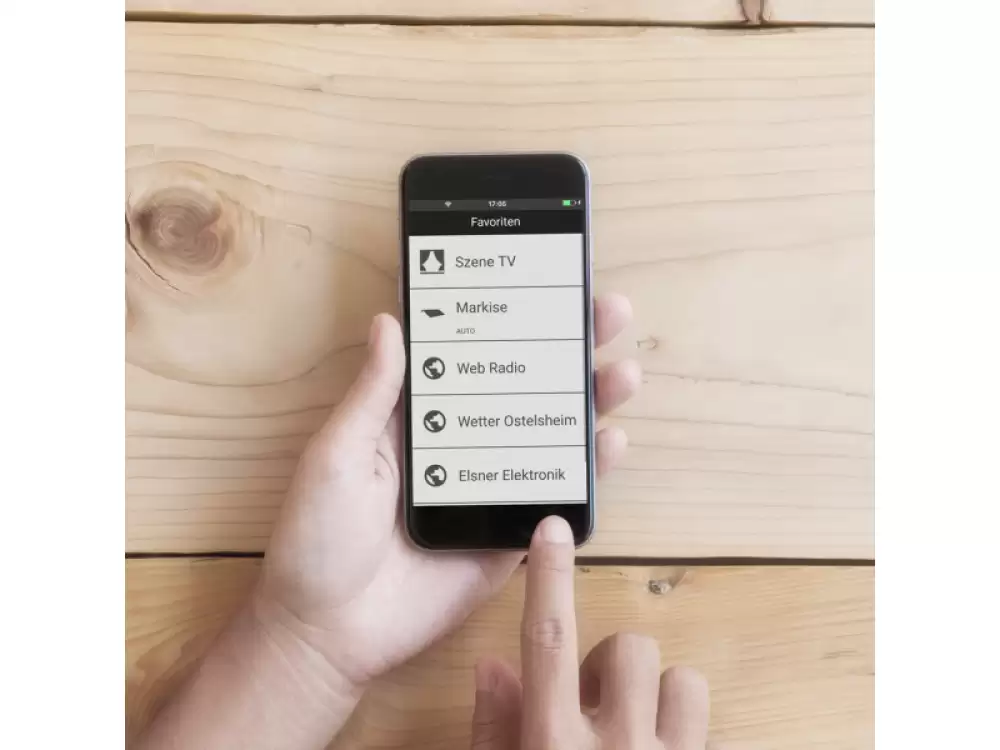

- Remote access via network for system setup, diagnostics, etc. Approval by the user required
- Slide show from SD card as screen saver
- Data storage on SD card (storage of settings)
- Integrated loudspeaker (4 tweeters, 1 broadband speaker)
- 24 scenes for calling up individually set movement positions and witching states. With a scene several motors and devices are addressed simultaneously so a suitable ambience is created with one press of a button ("TV", "Eating" etc.)
- 80 type A channels for drives (blinds, shutters, awnings, windows), fans and luminaires (switching, dimming, RGB(W), colour temperature). Each with extensive automatic functions -120 type B channels for operating and display elements (dimmer, pushbuttons), sensors, alarm messages and the transmission of floating point values and text messages
- 15 type C channels used as a temperature controller extension unit, i.e. it is used to control a heating or cooling system according to KNX specifications for HVAC applications -3 alarm objects and 4 central objects with function assignment on the display
- Individually adjustable presence simulation
- Safety module for alarm system messages with memory for event log
- Integrated HCL (Human Centric Lighting) control: biodynamic lighting control changes light colour and brightness in the course of the day
| Housing | Glass, plastic |
| Colour | black |

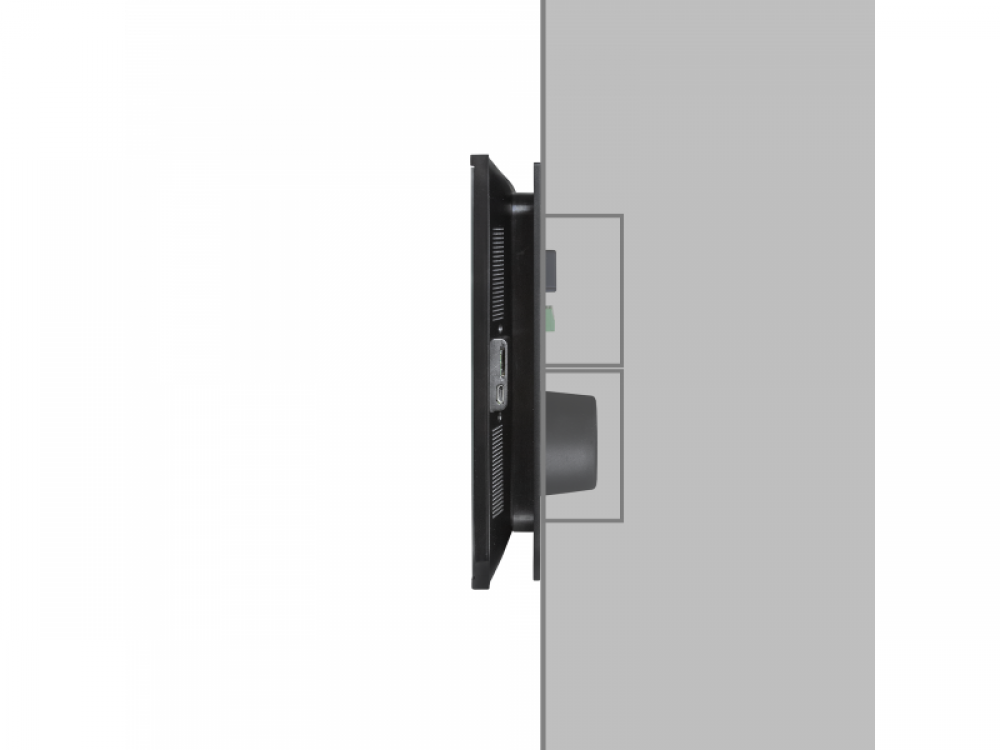

| Assembly | Flush mounting (in 2 standard switch boxes or one double box) |
| Degree of protection | IP 20 |
| Dimensions | Display front approx. 279 x 185 (W x H, mm), |
| Installation | depth approx. 30 mm |
| Display resolution | 1280 × 800 pixels |
| Weight | approx. 1.2 kg |
| Ambient temperature | Operation 0...+55°C, Storage -30…+70°C |
| Ambient humidity | 5…95% RH, avoid condensation |
| Operating voltage | 20...32 V DC. A suitable power pack can be purchased from Elsner Elektronik. |
| Power consumption | Readiness max. 17 W |
| Data output | KNX +/- Bus connector terminal |
| Group addresses | max. 2000 |
| Assignments | max. 2000 |
| Communication objects | 1979 |
Specifications
| Brand | ELSNER |
| Model Number | ELSNER 71200 |
| PROTOCOL | KNX |
| BODY MATERIAL | PLASTIC |
| MOUNTING TYPE | FLUSH MOUNTING |
| RELATIVE HUMIDITY | 5...95% RH, avoid bedewing |
| SUPPLY VOLTAGE | 24 VDC |
| IP RATING | IP20 |
| Lead Time | 10-15 DAYS |
