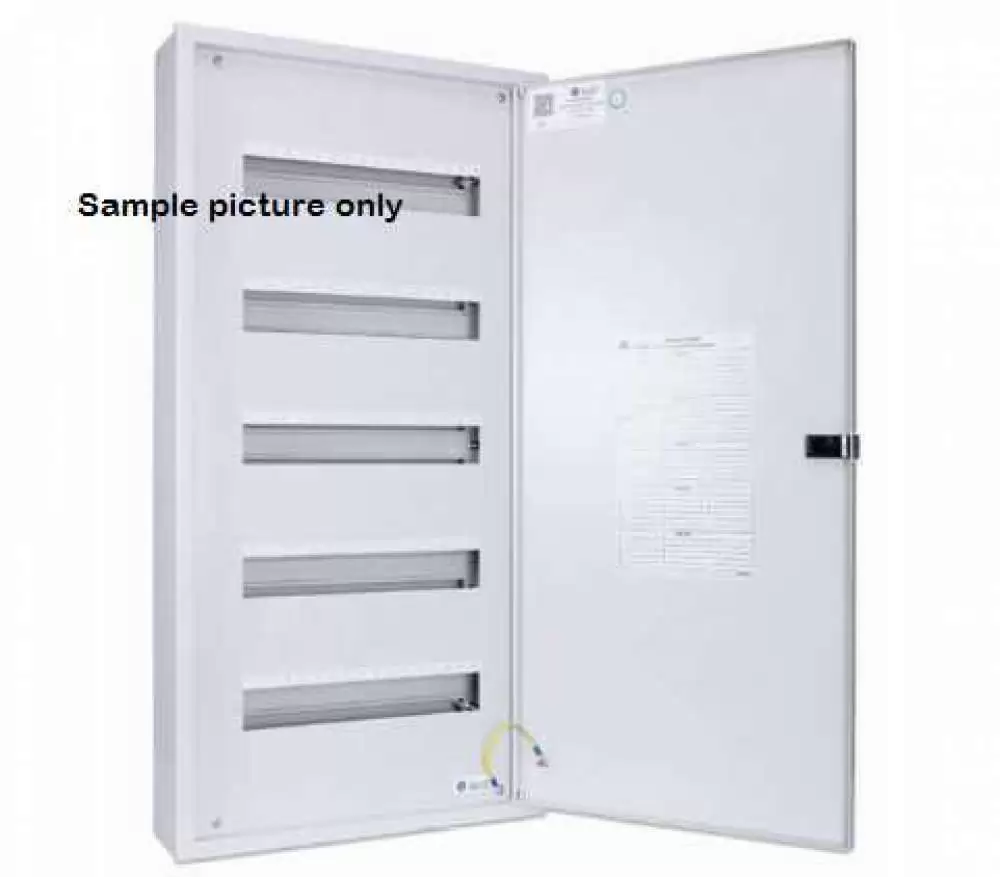

ALFANAR Modular Distribution Board DB 16 Modules 6 Row Surface Type RAL 7035 Grey 45-616MS00S

ALFANAR Modular Distribution Board DB 16 Modules 6 Row Surface Type RAL 7035 Grey 45-616MS00S

Special Note : Minimum Order Value applicable, Delivery limited to restricted areas only (Confirm by whatsapp or email), Additional discount may apply for Dhs. 3000.00 or above value orders.

APPLICATIONS

alfanar Modular Enclosures are standard products suitable for mounting various types of din rail mounted LV components. They are used for a safe and reliable distribution and control of power.

• Available up to 6 rows

• Door earthing provided to ensure earth continuity.

• Adjustable painted mounting assembly made of electro-galvanized Steel

• Fine texture polyester powder coated in RAL 7035 light grey colour & RAL 9010 white.

• Each row is capable of holding up to 24 din rail modules.

SPECIFICATIONS:

• Made of high quality electro-galvanized steel sheet of thickness up to 1.2mm

• Fine texture polyester powder coated in RAL 7035 light grey color &  RAL 9010 White

• Complies with IEC 60529 standards

• Degree of protection IP41

FEATURES:

• Press-formed Dead Front Cover (DFC) and door for better strength and aesthetic look*

• Hemming on box edges for additional mechanical strength.

• Circuit numbers are embossed on the DFC**

• Knockouts on both top and bottom sides of the enclosure

• Adjustable painted rail mounting assembly made of electro-galvanized steel

• Spacious enclosures facilitating ease of wiring and efficient heat dissipation

• Easily removable hinges, ideal for changing the door-opening direction

• Available in Flush and Surface mounting types

• Available up to 6 rows and each row can have up to 24 modules***

• Customized powder coating colors and textures upon request

• C-bend on hinge door for additional stiffness and strength****

Specifications
