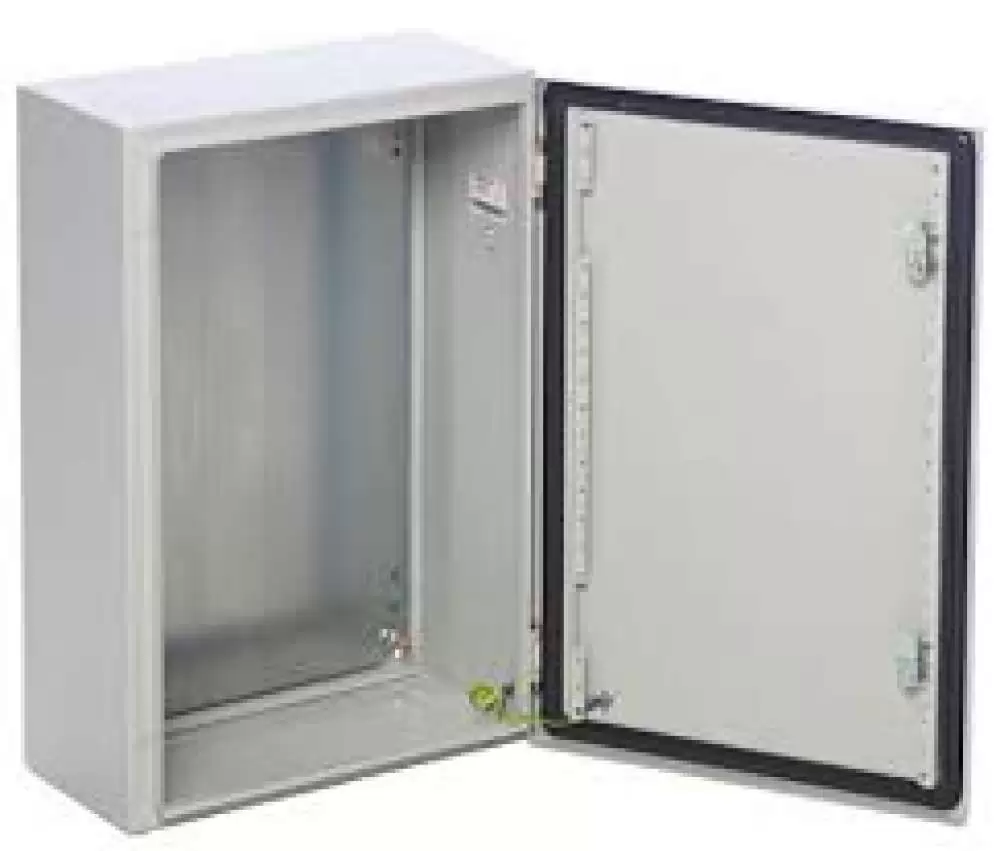

ALFANAR Metal Enclosure 600x500x200 IP66 with mounting and gland plates 47-SB605020D
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
BODY MATERIAL : High quality electro-galvanized steel
DOOR : SINGLE
COLOUR : RAL 7032
MOUNTING PLATE : YES, 2.0mm
GLAND PLATE : YES, BOTTOM
LOCK TYPE : DOUBLE
HS Code :
Lead Time :
VIEW MORE PRODUCT DETAILS
Related Products
ALFANAR Metal Enclosure 600x500x200 IP66 with mounting and gland plates 47-SB605020D
Special Note : Minimum Order Value applicable, Delivery limited to restricted areas only (Confirm by whatsapp or email), Additional discount may apply for Dhs. 3000.00 or above value orders.
Applications
Metal Enclosures (IP66) are designed to accommodate various types of switchgear and control gear assemblies to suit a variety of electrical installations in commercial and light industrial premises. They are designed for outdoor applications up to IP66.
Specications
• Made of high quality electro-galvanized steel sheet of thickness up to 1.5mm
• Matt-finish polyester powder coated in RAL-7032 light grey colour
• Standard mounting plate made of hot dip galvanized steel sheet of 2mm thickness with holes for strips
• Complies with IEC 60529/62208 standards
• Complies with CE standards
• Degree of protection IP65
Features
• Earthing studs are provided on both the enclosure and the door.
• CNC machine formed a polyurethane gasket for reliable sealing.
• Corner formed door ensures better weatherproofing and gives aesthetic looks.
• Easily removable hinges, ideal for changing the door opening direction (for certain sizes)
• Special profiled lip for better waterproofing.
• Lock features:
− Quarter turn cylindrical lock
− Metal keys and locking mechanism for durability.
− Key engaged when the lock is open
• A kit containing assembly hardware and instruction manual is provided with the enclosure
Specifications
| Brand | ALFANAR |
| Model Number | ALFANAR 47-SB605020D |
| BODY MATERIAL | High quality electro-galvanized steel |
| DOOR | SINGLE |
| COLOUR | RAL 7032 |
| MOUNTING PLATE | YES, 2.0mm |
| GLAND PLATE | YES, BOTTOM |
| LOCK TYPE | DOUBLE |
| IP RATING | IP66 |
| STANDARD | IEC 60529/62208, CE |
| TYPE | FREE STANDING |
| Lead Time |
