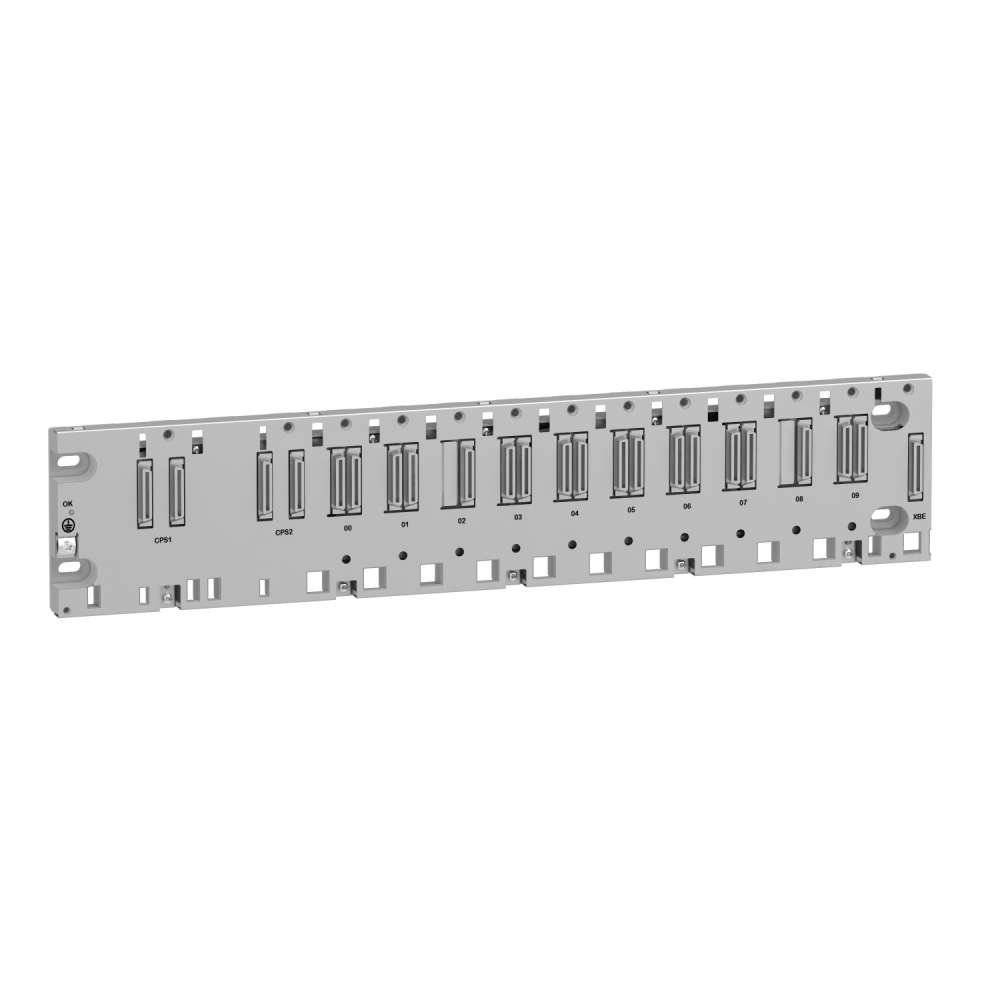

SCHNEIDER rack X80 - 10 slots - Redundant PS - Ethernet backplane, BMEXBP1002
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
PRODUCT RANGE : Modicon X80
PLC ACCESSORY : RACK
HS Code :
Lead Time : 6-8 WEEKS
VIEW MORE PRODUCT DETAILS
range of product | Modicon X80 |
---|---|
accessory / separate part type | Rack |
number of slots | 8 bus X + Ethernet 2 bus X |
---|---|
product compatibility | Specific application module I/O module BMXCPS4002 BMX processor BME processor |
power consumption in W | 251 mW 3.3 V DC 3.9 W 24 V DC |
electrical connection | 1 connector (XBE) expansion module |
fixing mode | By 4 M6 screws, mounting on plate By 4 screws - diameter: 4.326.35 mm, mounting on panel |
current consumption | 162 mA at 24 V DC 76 mA at 3.3 V DC |
MTBF reliability | 1770000 H |
net weight | 1.37 kg |
IP degree of protection | IP20 |
---|---|
ambient air temperature for operation | 060 C |
relative humidity | 595 % without condensation |
directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
Unit Type of Package 1 | PCE |
---|---|
Number of Units in Package 1 | 1 |
Package 1 Weight | 1.363 kg |
Package 1 Height | 6.6 cm |
Package 1 width | 15.1 cm |
Package 1 Length | 58.9 cm |
Unit Type of Package 2 | S04 |
Number of Units in Package 2 | 8 |
Package 2 Weight | 11.603 kg |
Package 2 Height | 30 cm |
Package 2 width | 40 cm |
Package 2 Length | 60 cm |
Specifications
Brand | SCHNEIDER ELECTRIC |
Model Number | BMEXBP1002 |
PRODUCT RANGE | Modicon X80 |
PLC ACCESSORY | RACK |
Lead Time | 6-8 WEEKS |
Warranty | 1 year warranty |
