SCHNEIDER ELECTRIC DF400160 HIGH SPEED FUSE 160A 00

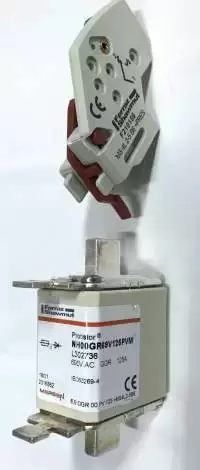

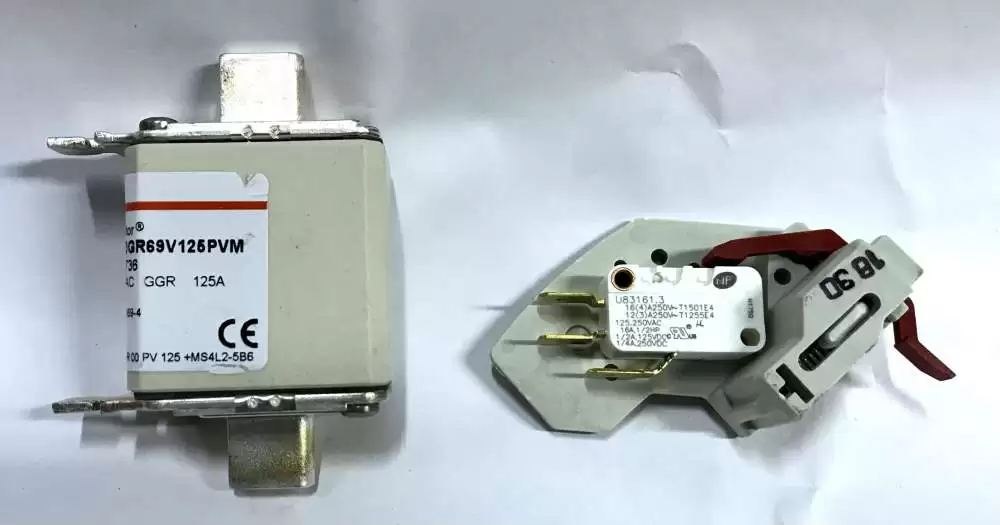

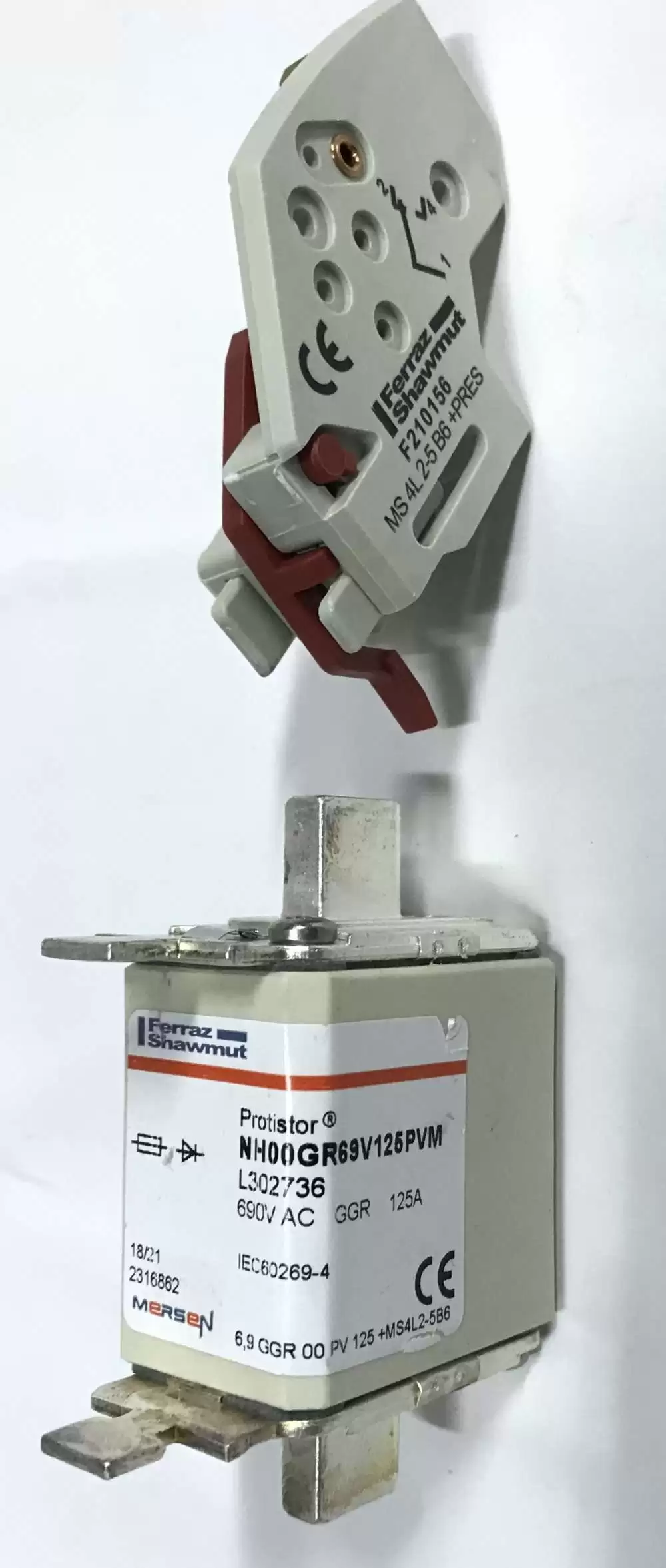

Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
CURRENT RATING : 160A
VOLTAGE RATING : 690 VAC / 500VDC
BREAKING CAPACITY : 200 kA
RATED FREQUENCY : 50/60 Hz
HS Code : 8536109090
Lead Time : 6-8 WEEKS
VIEW MORE PRODUCT DETAILS
Product range Fuse
Basic function Fuse-link
Field of application high speed
Rated current I A 160
Rated voltage AC 690 V DC 500 V
Construction size BS88 Size 37 x 94 mm
Utilization category aR
Breaking Capacity kA 200
usable for size/applications protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters
Standard/Approval BS
Shape offset bolted tags
Standards/Regulations BS88-4 IEC 60269-4
Optional accessories fuse-holder BH-1132
Specifications
Brand | SCHNEIDER ELECTRIC |
Model Number | DF400160 |
CURRENT RATING | 160A |
VOLTAGE RATING | 690 VAC / 500VDC |
BREAKING CAPACITY | 200 kA |
RATED FREQUENCY | 50/60 Hz |
Lead Time | 6-8 WEEKS |
Warranty | 2 year warranty |
