SCHNEIDER ELECTRIC DF400100 HIGH SPEED FUSE 100A 00

Now: AED 286.00 (Inclusive of VAT)

Qty:

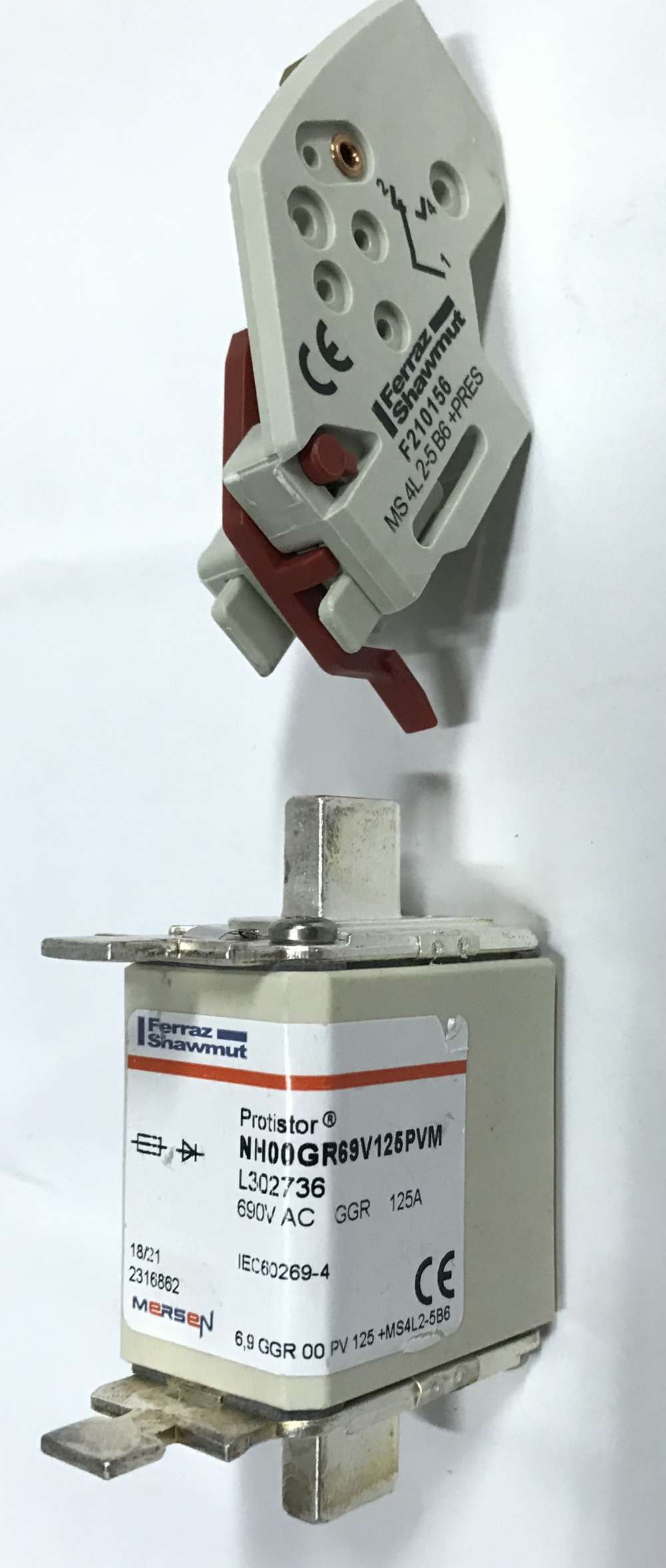

Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.

CURRENT RATING : 100A
VOLTAGE RATING : 690 VAC / 500VDC
BREAKING CAPACITY : 200 kA
RATED FREQUENCY : 50/60 Hz
Lead Time : 3-4 WORKING WEEKS
VIEW MORE PRODUCT DETAILS

2 year warranty
100% Guaranteed Warranty

Free Shipping Across UAE
When you spend above 699 AED

100% Genuine Products
Sourced from Trusted Independent Suppliers

Product range Fuse

Basic function Fuse-link

Field of application high speed

Rated current I A 100

Rated voltage AC 690 V DC 500 V

Construction size BS88 Size 37 x 94 mm

Utilization category aR

Breaking Capacity kA 200

usable for size/applications protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters

Standard/Approval BS

Shape offset bolted tags

Standards/Regulations BS88-4 IEC 60269-4

Optional accessories fuse-holder BH-1132

Specifications

BrandSCHNEIDER ELECTRIC
Model NumberDF400100
CURRENT RATING 100A
VOLTAGE RATING 690 VAC / 500VDC
BREAKING CAPACITY 200 kA
RATED FREQUENCY 50/60 Hz
Lead Time 3-4 WORKING WEEKS
Weight 1.00 kg
Warranty 2 year warranty
